MSI B760 GAMING PLUS WIFI User Manual

38
󳎫󸂈󶖒󲤆󳲝󲁅
󴨠󳲝󲁅󱯬󸜡󳞄󸶚󳲝󲁗󸸉󳎫󸂈󶖒󲁅󲁗󵭡󳳧󴞙
1
2 26
25
󹛳󷆧 󱥰󲁣󲂀󶎊 󹛳󷆧 󱥰󲁣󲂀󶎊

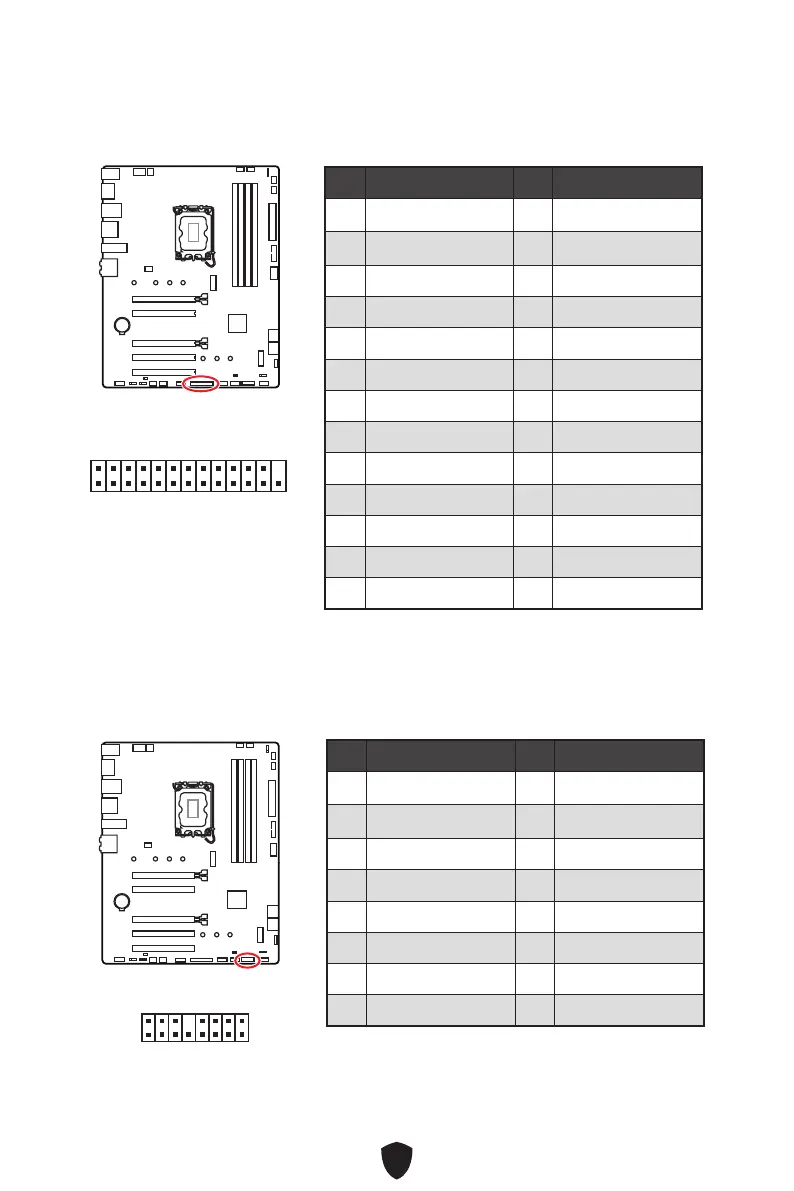

1 RSTB# 2 AFD#
3 PRND0 4 ERR#
5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN#
9 PRND3 10 Ground
11 PRND4 12 Ground
13 PRND5 14 Ground
15 PRND6 16 Ground
17 PRND7 18 Ground
19 ACK# 20 Ground
21 BUSY 22 Ground
23 PE 24 Ground
25 SLCT 26 No Pin
󹤅󱸬󱽷󳲝󲁅
󴨠󳲝󲁅󱯬󸜡󳞄󸶚󳲝󹤅󱸬󵷜󱽷
1
2 16
15
󹛳󷆧 󱥰󲁣󲂀󶎊 󹛳󷆧 󱥰󲁣󲂀󶎊
1 TBT_FORCE_PWR 2 TBT_S0IX_ENTRY_REQ
3 TBT_CIO_PLUG_EVENT# 4 TBT_S0IX_ENTRY_ACK
5 SLP_S3#_TBT 6 TBT_PSON_OVERRIDE_N
7 SLP_S5#_TBT 8 No Pin
9 Ground 10 SMBCLK_VSB
11 DG_PEWAKE# 12 SMBDATA_VSB
13 TBT_RTD3_PWR_EN 14 Ground
15 TBT_CARD_DET_R# 16 PD_IRQ#

MSI B760 GAMING PLUS WIFI Specifications

General

Form Factor	ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Slots	4
Max Memory	128GB
Memory Type	DDR5
PCIe 5.0 x16 Slot	1
PCIe 4.0 x16 Slot	1
PCIe 3.0 x1 Slot	2
M.2 Slots	2
SATA Ports	4
Networking	2.5G LAN
Audio	Realtek ALC897
RGB Headers	2
