23

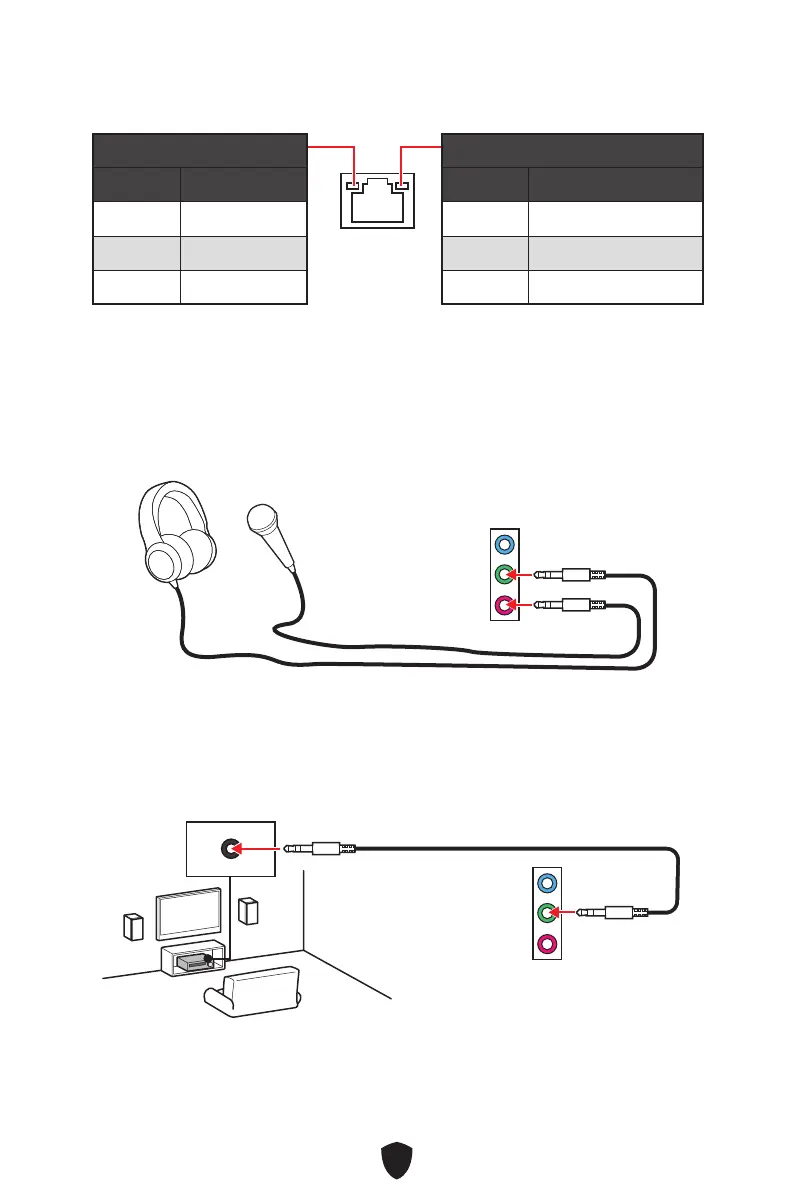

LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Speed
Off 10 Mbps
Green 100/1000 Mbps
Orange 2.5 Gbps
Audio Jacks Connection
Audio jacks to headphone and microphone diagram
Audio jacks to stereo speakers diagram
AUDIO INPUT

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI B760M GAMING PLUS WIFI and is the answer not in the manual?

MSI B760M GAMING PLUS WIFI Specifications

General IconGeneral
Form FactorMicro-ATX
ChipsetIntel B760
SocketLGA 1700
Memory Slots4
Maximum Memory128 GB
Memory TypeDDR5
WirelessWi-Fi 6E
RAID SupportRAID 0, 1, 5, 10
M.2 Slots2
SATA Ports4
Bluetooth5.3
AudioRealtek ALC897
LAN1x 2.5GbE
PCIe Slots1 x PCIe 3.0 x1
