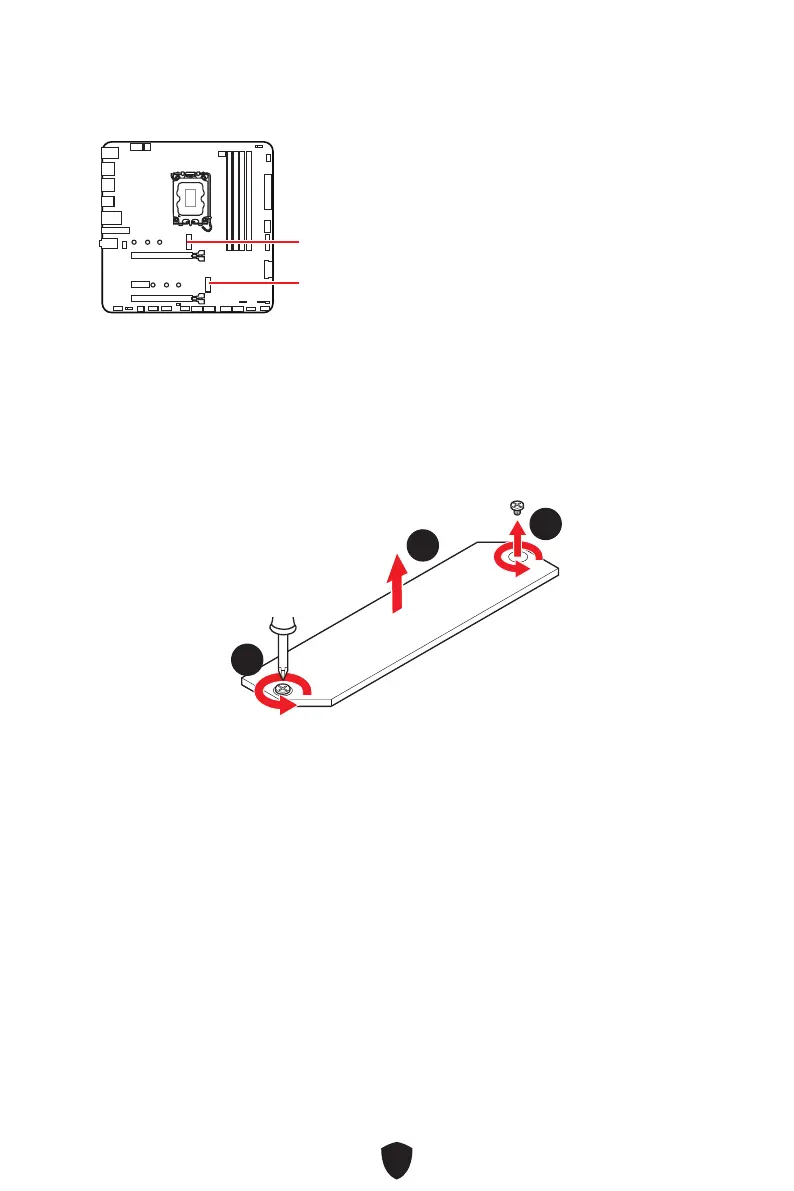

M2_1~2: M.2 Slots (Key M)
M2_1
M2_2
Important
Intel® RST only supports PCIe M.2 SSD with
UEFI ROM.
If your M.2 SSD equips its own heatsink,
please remove the M.2 rubber cube in the
M.2 slot before installing M.2 SSD. Do not
re-install the heatsink supplied with your
motherboard.
Installing M.2 module into M2_1 slot
1. Loosen the screws of M.2 Shield Frozr heatsink.
2. Lift up the M.2 Shield Frozr heatsink and remove it.
11
22
11
