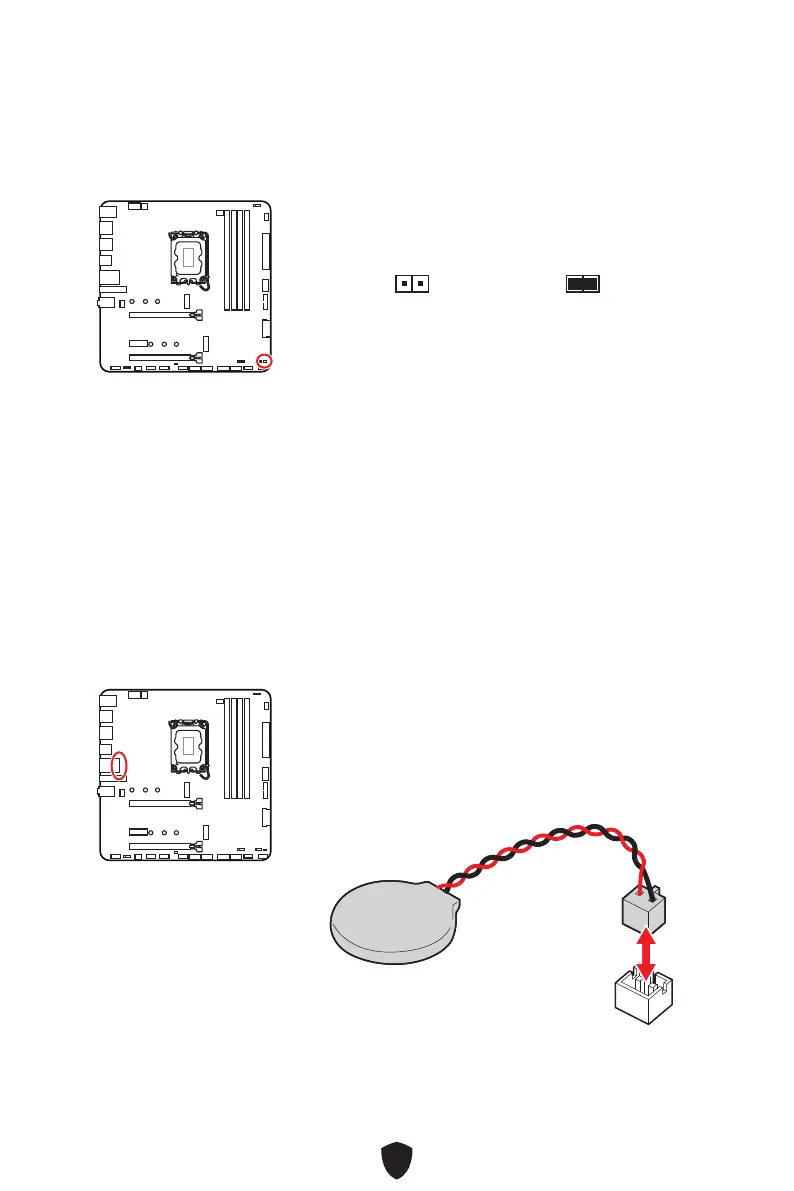

JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration data. If you want to clear the system
configuration, set the jumpers to clear the CMOS memory.
BAT1： CMOS Battery
If the CMOS battery is out of charge, the time in the BIOS will be reset and the data of
system configuration will be lost. In this case, you need to replace the CMOS battery.
Keep Data
(default)
Clear CMOS/
Reset BIOS
Resetting BIOS to default values
1. Power off the computer and unplug the power cord.
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and Power on the computer.
Replacing CMOS battery
1. Unplug the battery wire from the BAT1 connector and
remove the battery.
2. Connect the new CR2032 battery with wire to the
BAT1 connector.

MSI B760M GAMING PLUS WIFI Specifications

General

Form Factor	Micro-ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Slots	4
Maximum Memory	128 GB
Memory Type	DDR5
Wireless	Wi-Fi 6E
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	2
SATA Ports	4
Bluetooth	5.3
Audio	Realtek ALC897
LAN	1x 2.5GbE
PCIe Slots	1 x PCIe 3.0 x1
