MSI B760M GAMING PLUS WIFI User Manual

41
⚠
Important
∙ The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
∙ Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
∙ Please use MSI’s software to control the extended LED strip.

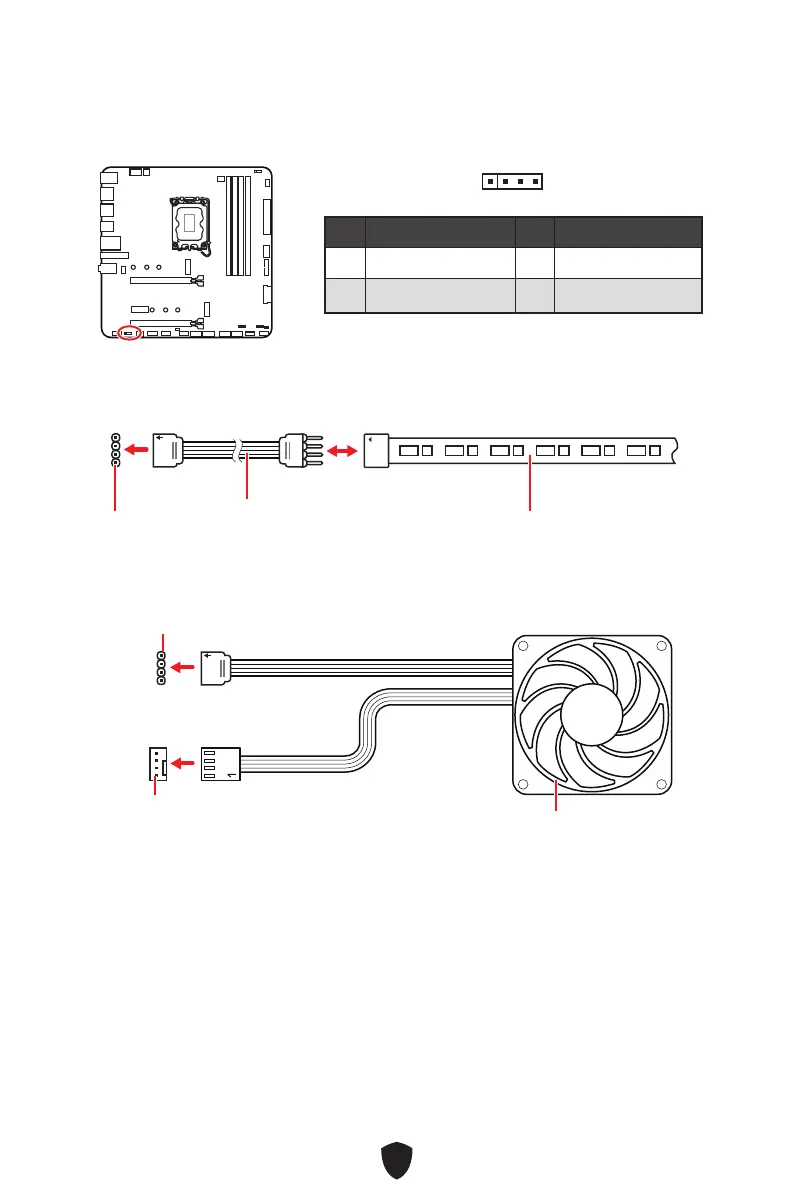

JRGB1: RGB LED connector
The JRGB connector allows you to connect the 5050 RGB LED strips 12V.
1
G
R
B
JRGB connector
JRGB extension cable
5050 RGB LED strips 12V
RGB LED Strip Connection
1
1
G
R
B
JRGB connector
System fan connector
RGB LED Fan Connection
RGB LED fan
Pin Signal Name Pin Signal Name
1 +12V 2 G
3 R 4 B
1

MSI B760M GAMING PLUS WIFI Specifications

General

Form Factor	Micro-ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Slots	4
Maximum Memory	128 GB
Memory Type	DDR5
Wireless	Wi-Fi 6E
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	2
SATA Ports	4
Bluetooth	5.3
Audio	Realtek ALC897
LAN	1x 2.5GbE
PCIe Slots	1 x PCIe 3.0 x1
