MSI B760M GAMING PLUS WIFI User Manual

36

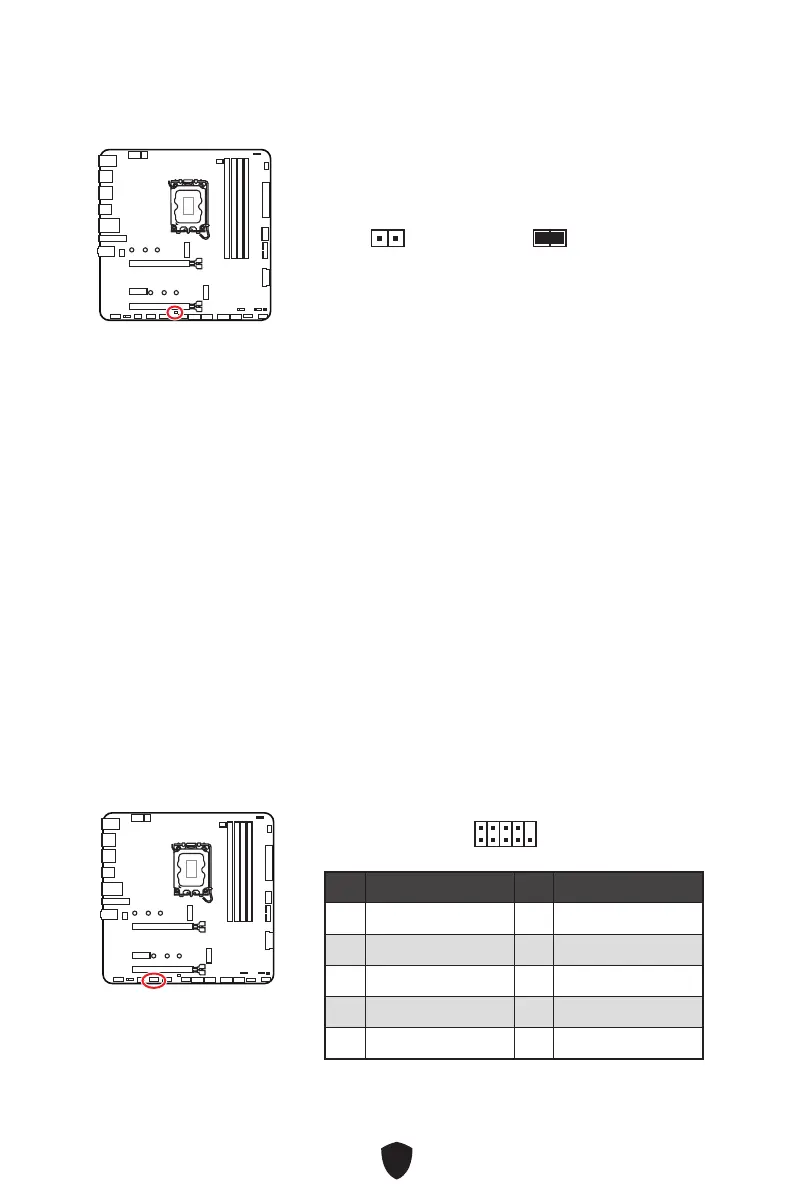

JCI1: Chassis Intrusion Connector
This connector allows you to connect the chassis intrusion switch cable.
Normal
(default)
Trigger the chassis
intrusion event
Using chassis intrusion detector
1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis.
2. Close the chassis cover.
3. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.
4. Set Chassis Intrusion to Enabled.
5. Press F10 to save and exit and then press the Enter key to select Yes.
6. Once the chassis cover is opened again, a warning message will be displayed on
screen when the computer is turned on.
Resetting the chassis intrusion warning
1. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.
2. Set Chassis Intrusion to Reset.
3. Press F10 to save and exit and then press the Enter key to select Yes.
JCOM1 : Serial Port connector
This connector allows you to connect the optional serial port with bracket.
Pin Signal Name Pin Signal Name
1 DCD 2 SIN
3
SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No pin
1
2 10
9

MSI B760M GAMING PLUS WIFI Specifications

General

Form Factor	Micro-ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Slots	4
Maximum Memory	128 GB
Memory Type	DDR5
Wireless	Wi-Fi 6E
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	2
SATA Ports	4
Bluetooth	5.3
Audio	Realtek ALC897
LAN	1x 2.5GbE
PCIe Slots	1 x PCIe 3.0 x1
