MSI B760M GAMING PLUS WIFI User Manual

33

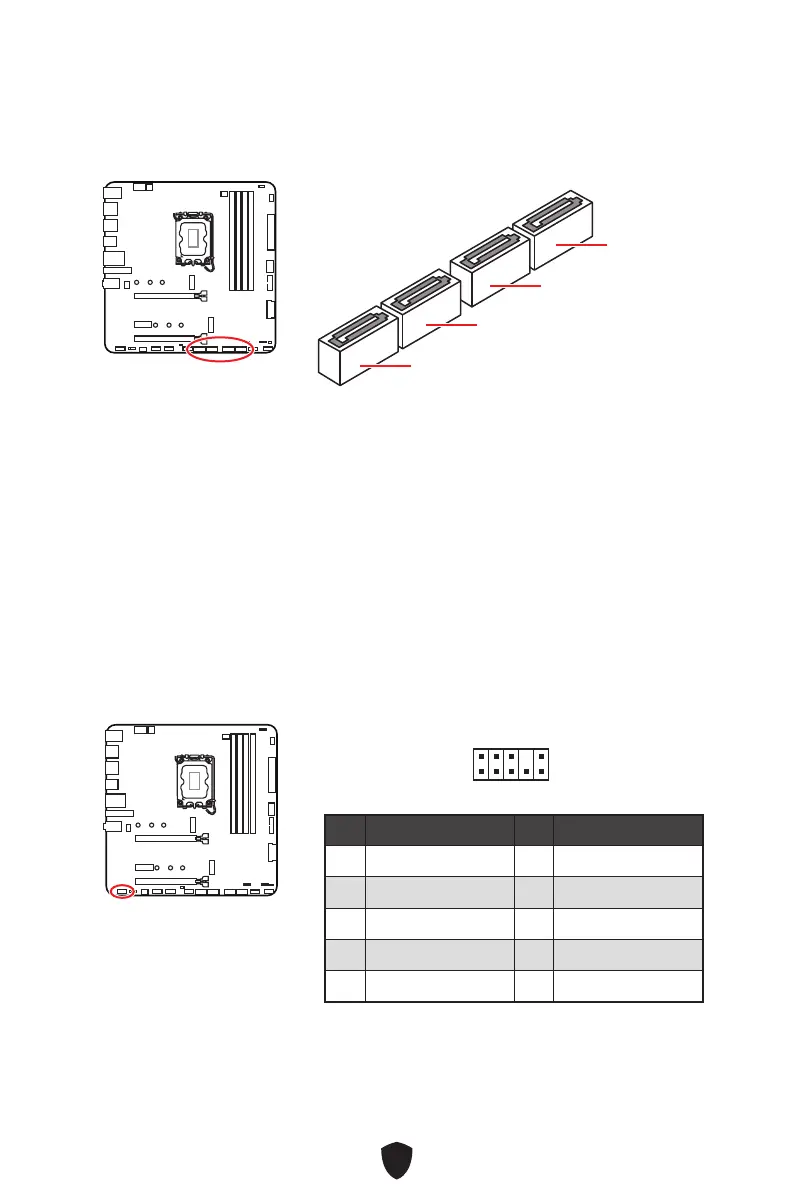

SATA_5~8: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
⚠
Important
∙ Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
∙ SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
∙ SATA_8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
SATA_5
SATA_7
SATA_6
SATA_8
JAUD1: Front Audio Connector
This connector allows you to connect audio jacks on the front panel.
1
2 10
9
Pin Signal Name Pin Signal Name
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection

MSI B760M GAMING PLUS WIFI Specifications

General

Form Factor	Micro-ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Slots	4
Maximum Memory	128 GB
Memory Type	DDR5
Wireless	Wi-Fi 6E
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	2
SATA Ports	4
Bluetooth	5.3
Audio	Realtek ALC897
LAN	1x 2.5GbE
PCIe Slots	1 x PCIe 3.0 x1
