MSI B760M GAMING PLUS WIFI User Manual

31

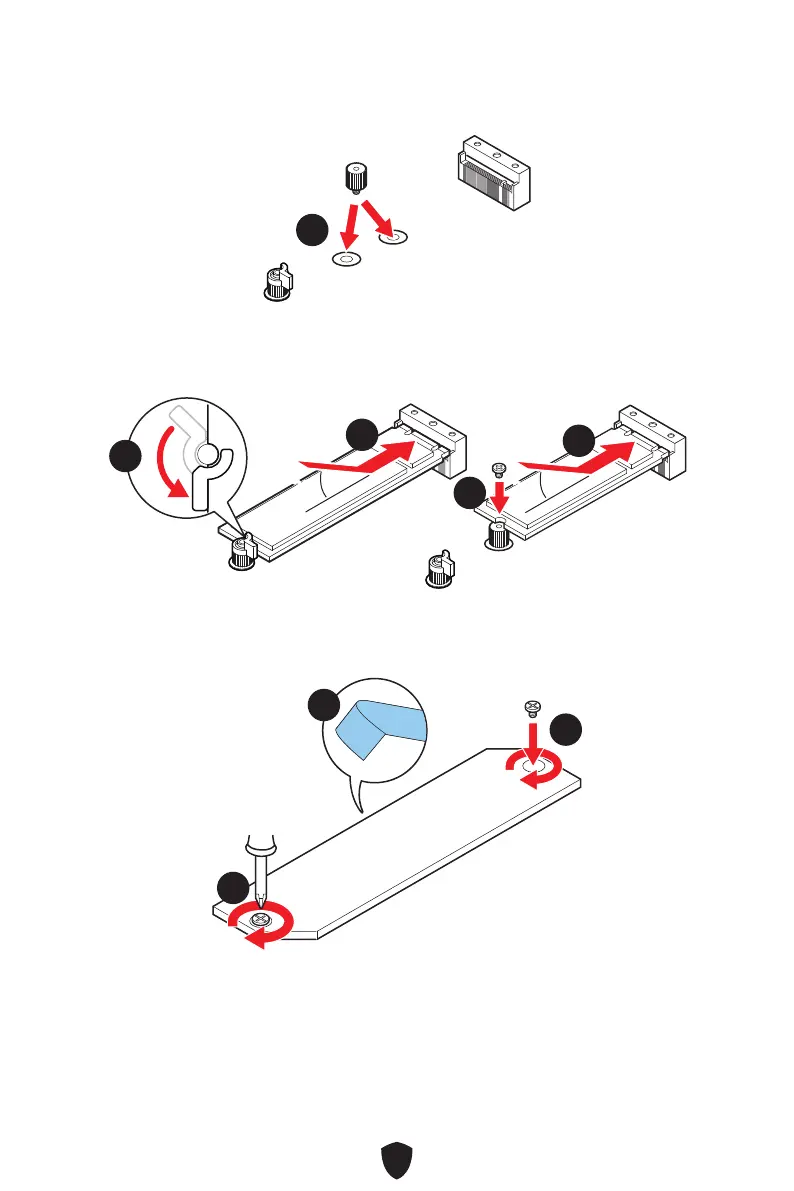

3. Secure the supplied M.2 standoff according to your M.2 SSD length. Skip this step,
if you install 2280 SSD.
33
2260
2242
4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
5. For 2280 SSD, rotate the EZ M.2 Clip to fix the M.2 SSD. For 2242/ 2260 SSD, secure
the M.2 SSD in place with the supplied M.2 screw.
30º30º
30º30º
44
55
44
55
2280 SSD
2242/ 2260
SSD
6. Remove the protective films from the thermal pads under the M.2 Shield Frozr
heatsink.
7. Put the M.2 Shield Frozr heatsink back in place and secure it.
66
77
77

MSI B760M GAMING PLUS WIFI Specifications

General

Form Factor	Micro-ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Slots	4
Maximum Memory	128 GB
Memory Type	DDR5
Wireless	Wi-Fi 6E
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	2
SATA Ports	4
Bluetooth	5.3
Audio	Realtek ALC897
LAN	1x 2.5GbE
PCIe Slots	1 x PCIe 3.0 x1
