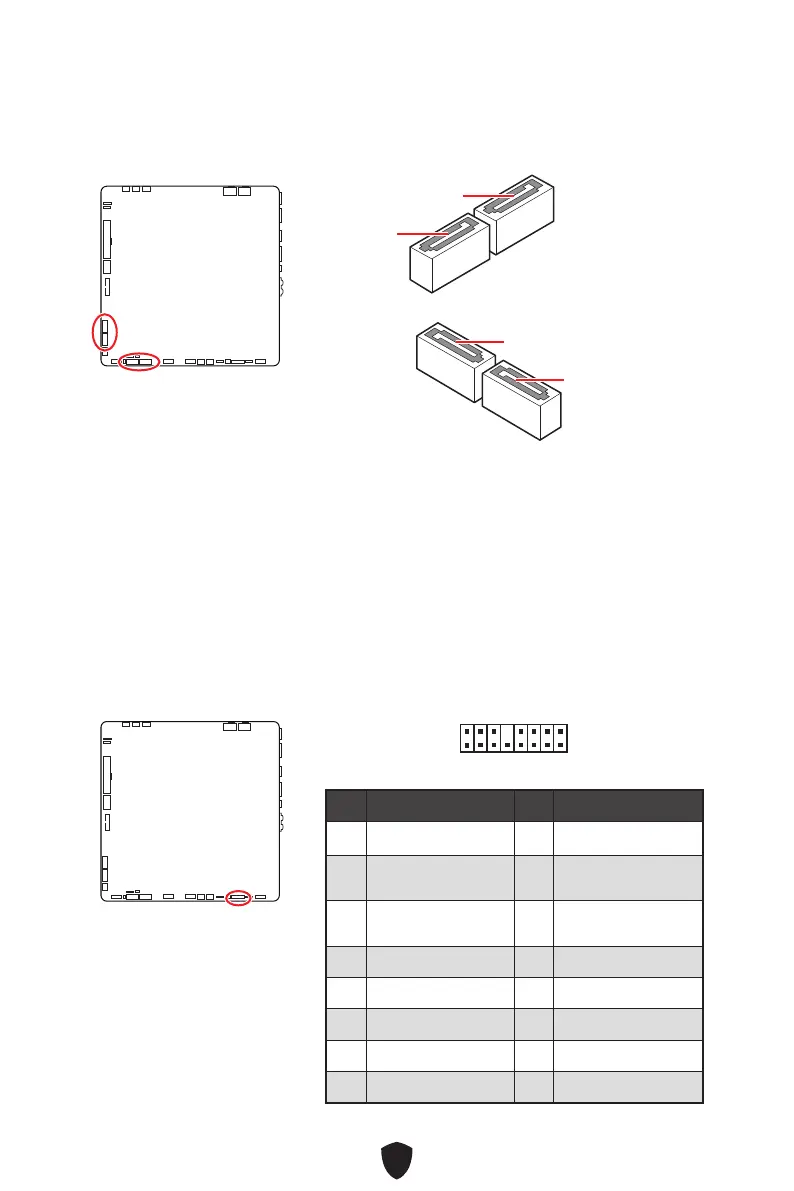

SATA_5~8: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

⚠

Important

∙

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

∙

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.

∙

SATA_8 will be unavailable when installing M2.SATA SSD in the M2_2 slot.

SATA_7

SATA_8

SATA_6

SATA_5

JTBT1: Thunderbolt Add-on Card Connector

This connector allows you to connect the add-on Thunderbolt I/O card.

2 16

Pin Signal Name Pin Signal Name

1 TBT_FORCE_PWR 2 TBT_S0IX_ENTRY_REQ

TBT_CIO_PLUG_

EVENT#

4 TBT_S0IX_ENTRY_ACK

5 SLP_S3#_TBT 6

TBT_PSON_

OVERRIDE_N

7 SLP_S5#_TBT 8 No Pin

9 Ground 10 SMBCLK_VSB

11 DG_PEWAKE# 12 SMBDATA_VSB

13 TBT_RTD3_PWR_EN 14 Ground

15 TBT_CARD_DET_R# 16 PD_IRQ#
