Important

∙

The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips

(12V/G/R/B) with the maximum power rating of 3A (12V).

∙

Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing the RGB LED strip.

∙

Please use MSI’s software to control the extended LED strip.

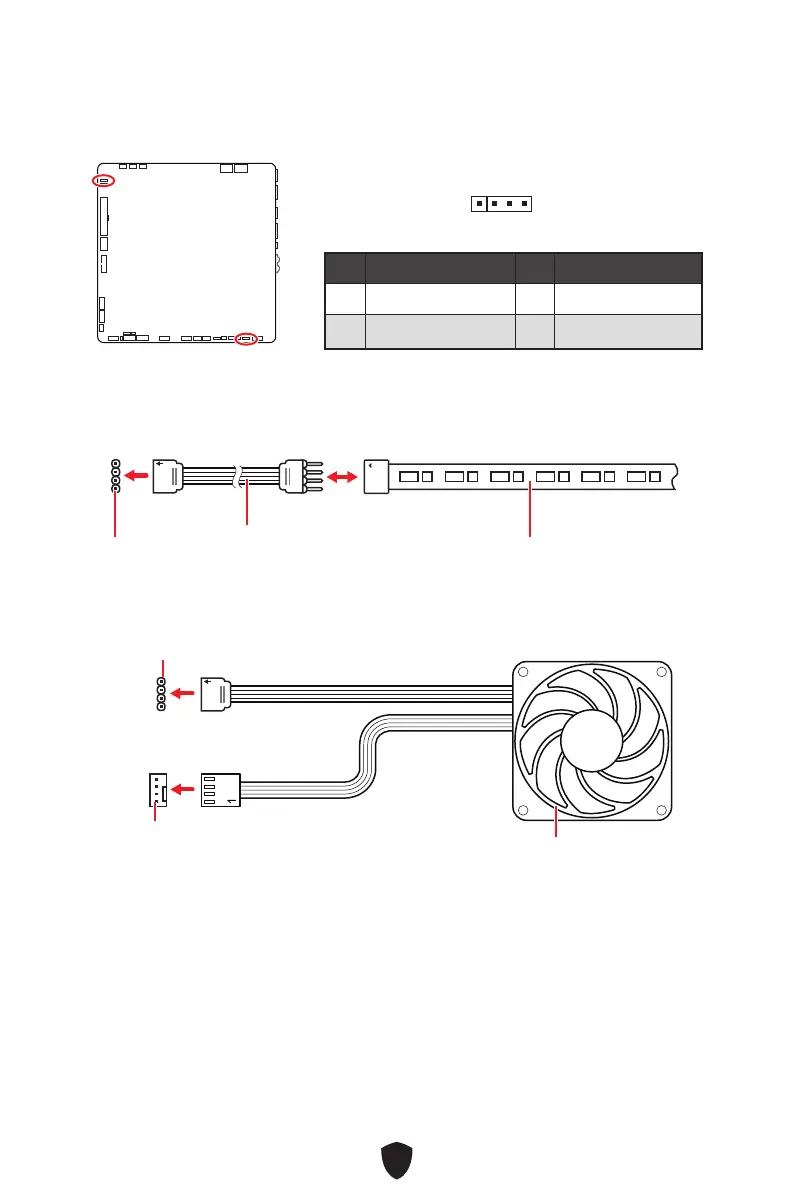

JRGB1~2: RGB LED connectors

The JRGB connectors allow you to connect the 5050 RGB LED strips 12V.

JRGB connector

JRGB extension cable

5050 RGB LED strips 12V

RGB LED Strip Connection

JRGB connector

System fan connector

RGB LED Fan Connection

RGB LED fan

Pin Signal Name Pin Signal Name

1 +12V 2 G

3 R 4 B
