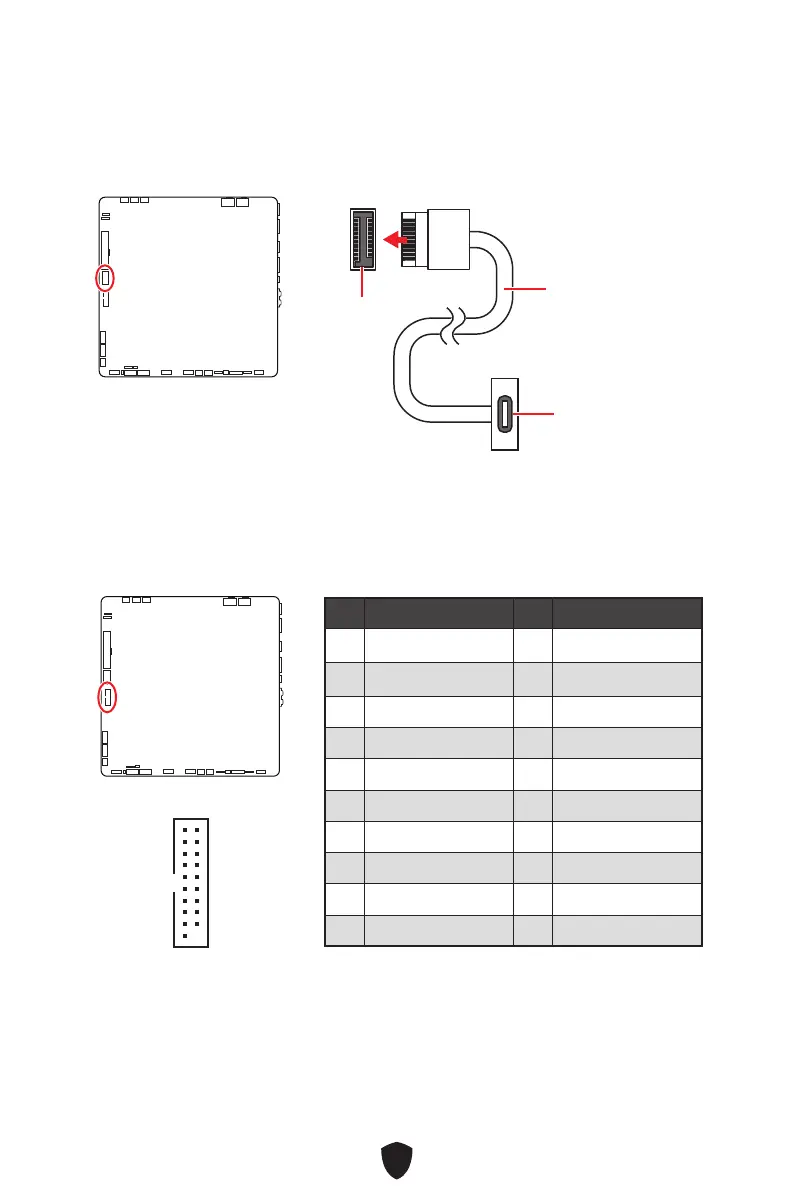

JUSB3: USB 3.2 Gen 1 Connector

This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.

⚠

Important

Note that the Power and Ground pins must be connected correctly to avoid possible

damage.

JUSB4: USB 3.2 Gen 2 Type-C front panel Connector

This connector allows you to connect USB 3.2 Gen 2 10Gbps Type-C connector on the

front panel. The connectors possess a foolproof design. When you connect the cable,

be sure to connect it with the corresponding orientation.

JUSB4

USB Type-C Cable

USB Type-C port on

the front panel

Pin Signal Name Pin Signal Name

1 Power 2 USB3_RX_DN

3 USB3_RX_DP 4 Ground

5 USB3_TX_C_DN 6 USB3_TX_C_DP

7 Ground 8 USB2.0-

9 USB2.0+ 10 Ground

11 USB2.0+ 12 USB2.0-

13 Ground 14 USB3_TX_C_DP

15 USB3_TX_C_DN 16 Ground

17 USB3_RX_DP 18 USB3_RX_DN

19 Power 20 No Pin

10 11
