MSI B760M PROJECT ZERO User Manual

36
⚠
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.

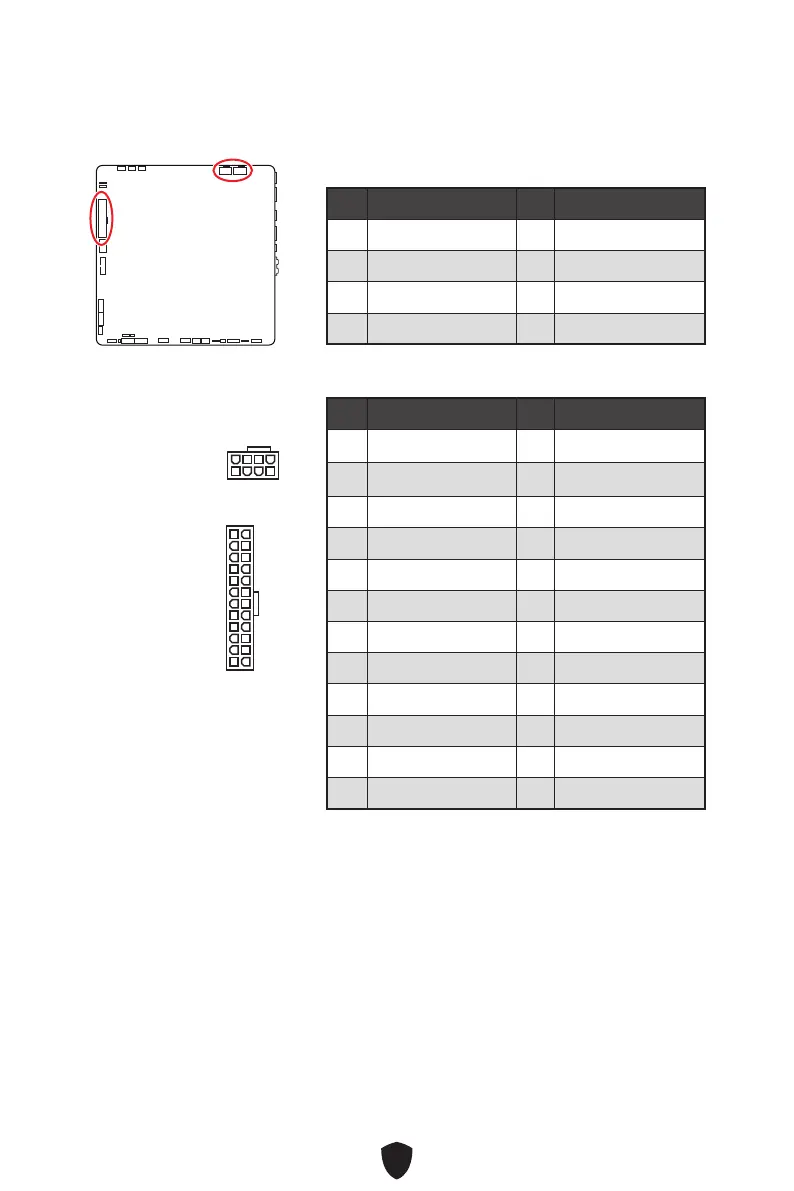

CPU_PWR1~2, ATX_PWR1: Power Connectors
These connectors allow you to connect an ATX power supply.
CPU_PWR1~2
Pin Signal Name Pin Signal Name
1 Ground 2 Ground
3 Ground 4 Ground
5 +12V 6 +12V
7 +12V 8 +12V
ATX_PWR1
Pin Signal Name Pin Signal Name
1 +3.3V 2 +3.3V
3 Ground 4 +5V
5 Ground 6 +5V
7 Ground 8 PWR OK
9 5VSB 10 +12V
11 +12V 12 +3.3V
13 +3.3V 14 -12V
15 Ground 16 PS-ON#
17 Ground 18 Ground
19 Ground 20 Res
21 +5V 22 +5V
23 +5V 24 Ground
5
4 1
8
CPU_PWR1~2
24
131
12
ATX_PWR1

MSI B760M PROJECT ZERO Specifications

General

Form Factor	Micro-ATX
Chipset	Intel B760
Socket	LGA 1700
Maximum Memory	128 GB
Audio	Realtek ALC897 Codec
RGB Support	Yes, Mystic Light
Memory Slots	4
PCIe Slots	1 x PCIe 5.0 x16
Storage Interfaces	2 x M.2 slots, 4 x SATA 6Gb/s ports
USB Ports	2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
LAN	Realtek RTL8125BG 2.5Gbps
Power Connectors	1 x 24-pin ATX
