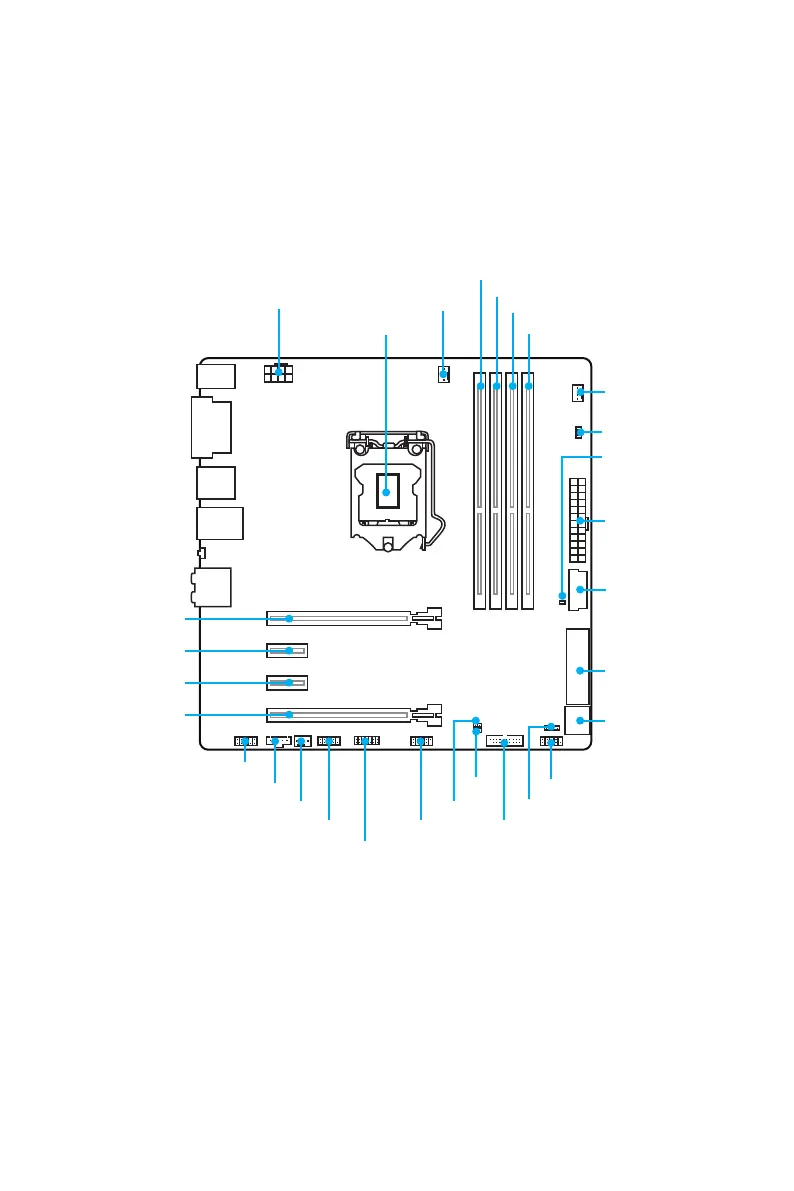

Overview of Components
Overview of Components
CPUFAN1
JPWR2
PCI_E1
JTPM1
PCI_E3
PCI_E2
PCI_E4
CPU Socket
DIMM1
DIMM2
DIMM3
DIMM4
JUSB2
JUSB3
JFP1
JFP2
SYSFAN2
SYSFAN1
JTBT1
EZ Debug LED
XMP LED
JAUD1
JPWR1
JUSB1
JCOM1
SATA5_6
SE1_21-SATA43
JCI1
JBAT1
*JTBT1 is used to connect a specific card.
