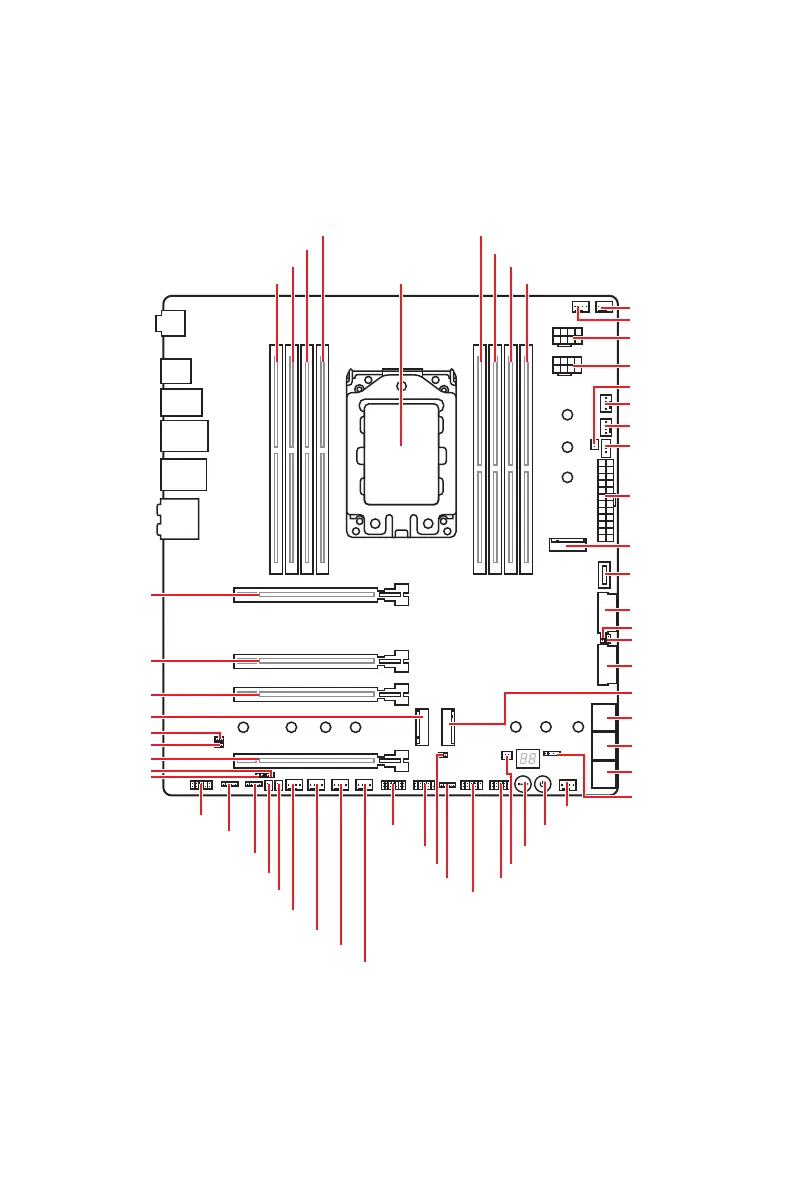

Overview of Components
Overview of Components
CPU_PWR1
CPU_PWR2
SYS_FAN1
EXS_FAN3
JCORSAIR1
CPU Socket
CPU_FAN1
PUMP_FAN1
JUSB3
JUSB4
JBLK_D1
JBLK_U1
JUSB5
JRAINBOW1
SYS_FAN4
POWER1
RESET1
JPWRLED1
JUSB2
JUSB1
JFP2
JFP1
JSLOW1
SYS_FAN3
SYS_FAN2
EXS_FAN2
EXS_FAN1
T_SEN2
T_SEN3
T_SEN1
PCI_E4
PCI_E3
PCI_E2
PCI_E1
M2_2
JOC_FS1
JOC_RT1
JTPM1



ATX_PWR1
M2_3
M2_1
DIMMC1
DIMMC2
DIMMD1
DIMMD2
DIMMB2
DIMMB1
DIMMA2
DIMMA1
JRAINBOW2
JRGB1
JAUD1
JCI1
JBAT1
