Components
EOL Instructions
Solid-State Drive Assembly

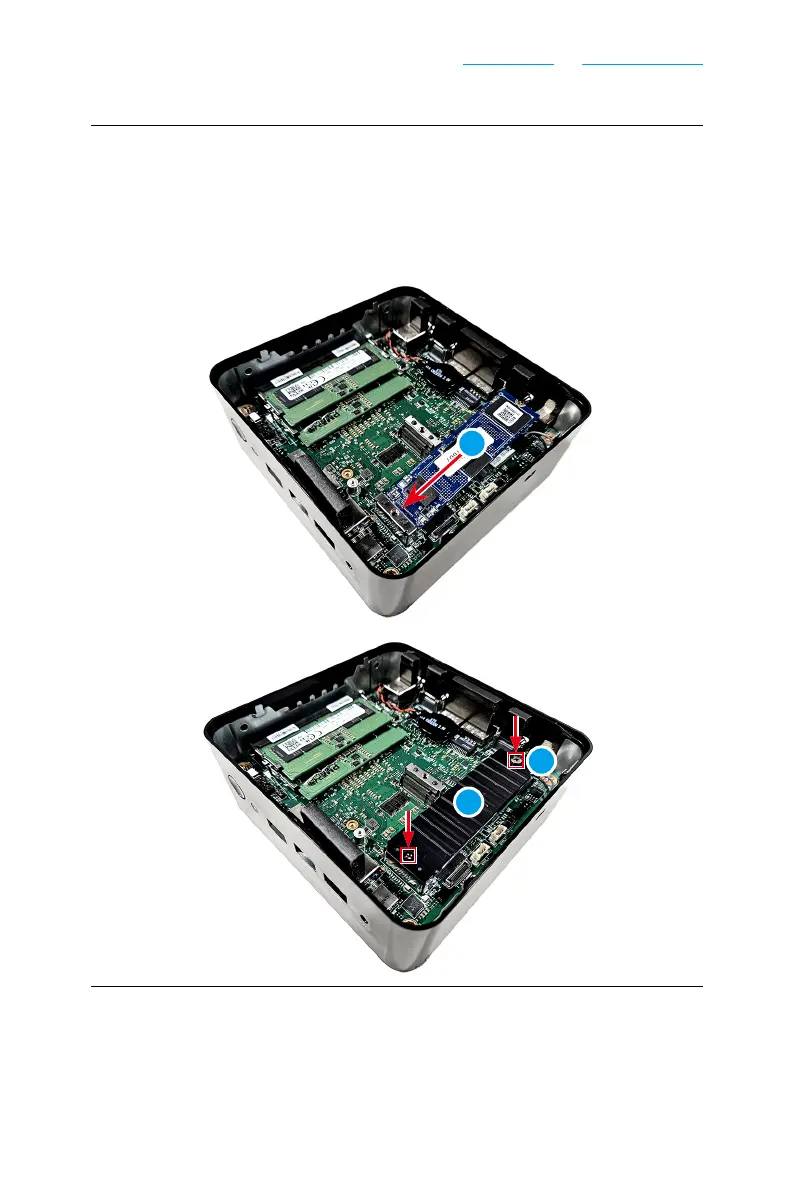

1. Align the notch on the solid-state drive with the tab on the M.2 slot.
2. Slide the solid-state drive
❶ into the M.2 slot.
3. Align and attach the heat sink
❷ onto the solid-state drive.
4. Replace and tighten the screw
❸ with a cross-head screwdriver to secure the
solid-state drive & heat sink in place.
1
2
3
