MSI H410M PRO-C User Manual

12



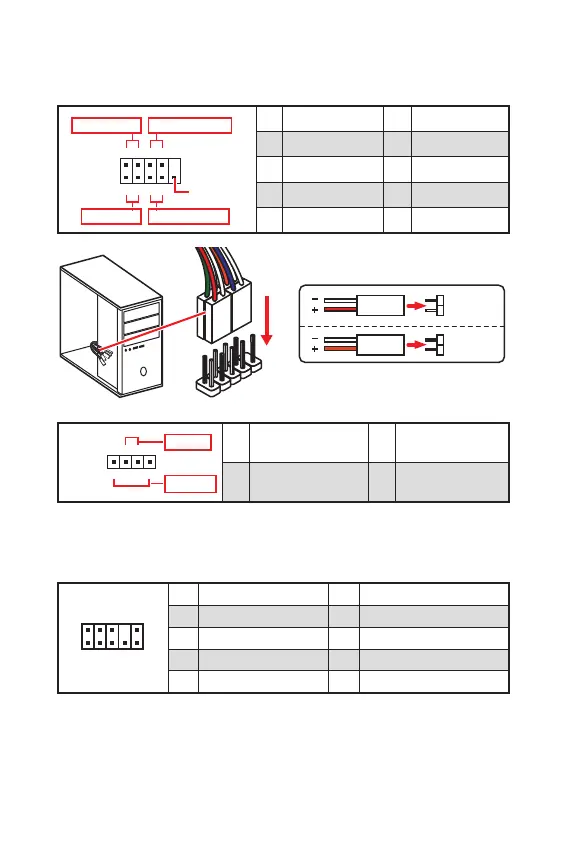

These connectors connect to the switches and LEDs on the front panel.
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
JFP2
1
+
+
-
-
Speaker
Buzzer
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1

This connector allows you to connect audio jacks on the front panel.
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection

MSI H410M PRO-C Specifications

General

Audio chip	Realtek ALC892 / Realtek ALC897
Component for	PC
Motherboard chipset	Intel H410
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Number of mounting holes	6
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2666, 2933 MHz
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
PCI Express x16 (Gen 3.x) slots	1
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Number of SATA II connectors	0
Number of SATA III connectors	4
BIOS type	UEFI AMI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel processing technology support	Not supported

Weight and Dimensions

Depth	193 mm
Width	244 mm
