En-7
MS-7636 Mainboard
English

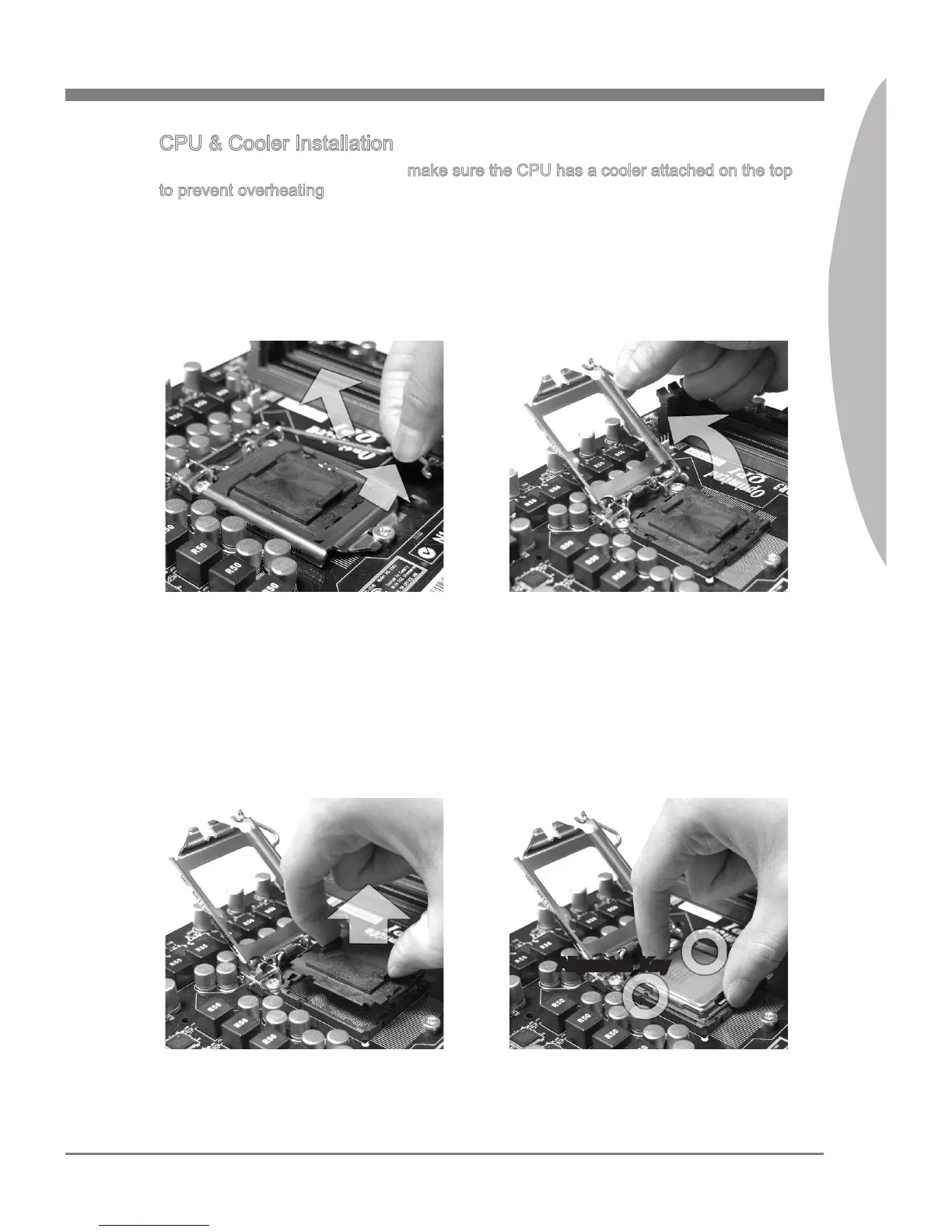

CPU & Cooler Installation
When you are installing the CPU, make sure the CPU has a cooler attached on the top
to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU
before installing the heat sink/cooler fan for better heat dispersion.
Follow the steps below to install the CPU & cooler correctly. Wrong installation will
cause the damage of your CPU & mainboard.
Open the load level.
1.
Lift the load lever up to fully open po-
sition.
2.
The CPU socket has a plastic cap on
it to protect the contact from damage.
Before you install CPU, always cover
it to protect the socket pin. Remove
the cap (as the arrow shows).
3. After conrming the CPU direction for
correct mating, put down the CPU in
the socket housing frame. Be sure to
grasp on the edge of the CPU base.
Note that the alignment keys are
matched.
4.
Alignment Key
To Next Page
