Overview of Components

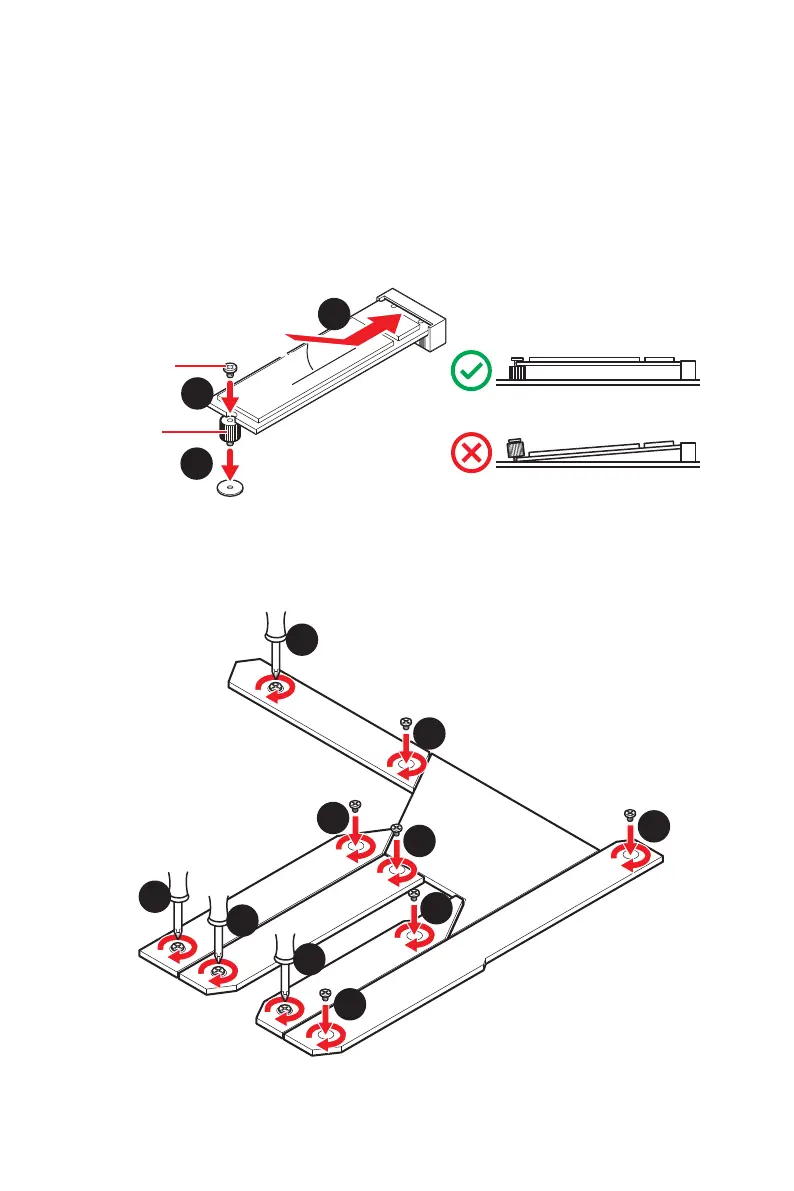

3. Secure the supplied M.2 standoff according to your M.2 SSD length if need.
4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
5. Secure the M.2 SSD in place with the supplied M.2 8.5H screw.
⚠
Important
Skip step 3 and step 5, if you install 22110 M.2 into M2_2, M2_3, M2_5 & M2_6 slots or
install 2280 M.2 into M2_1 & M2_4 slots.
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
30º30º
5
4
3
8.5H screw
Standoff
