37
Overview of Components

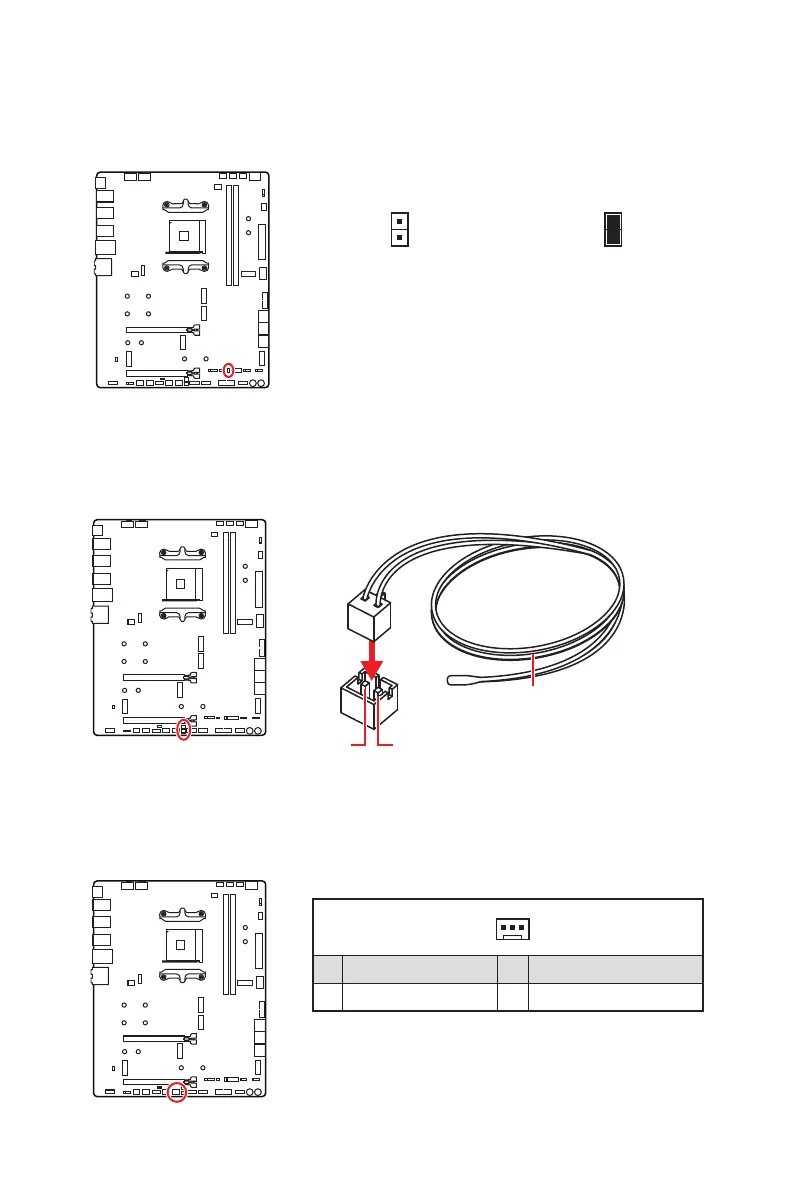

T_SEN1~2: Thermal Sensor Connectors
These connectors allow you to connect the thermistor cable and use it to monitor the
temperature of the detection point.
Thermistor cable
GND
Sense
W_FLOW1: Water Flow Meter Connector
This connector allows you to connect a flow meter to monitor the flow rate of your
liquid cooling system.
1
1 Ground 3 WFLOW IN
2 WFLOW PWR (2A)
Normal Boot
(default)
Enabled
Boot with lower PCIe
(from CPU) mode for
Safe Boot.
JOC_FS1: Safe Boot Jumper
This jumper is used for Safe Boot. Once enabled, the system will boot with lower PCIe
(from CPU) mode.
To Next Page
