MSI MEG X570S UNIFY-X MAX - Storage and Connectivity Interfaces

33
Overview of Components
M2_1~6: M.2 Slots (Key M)
2
2
2
2
2

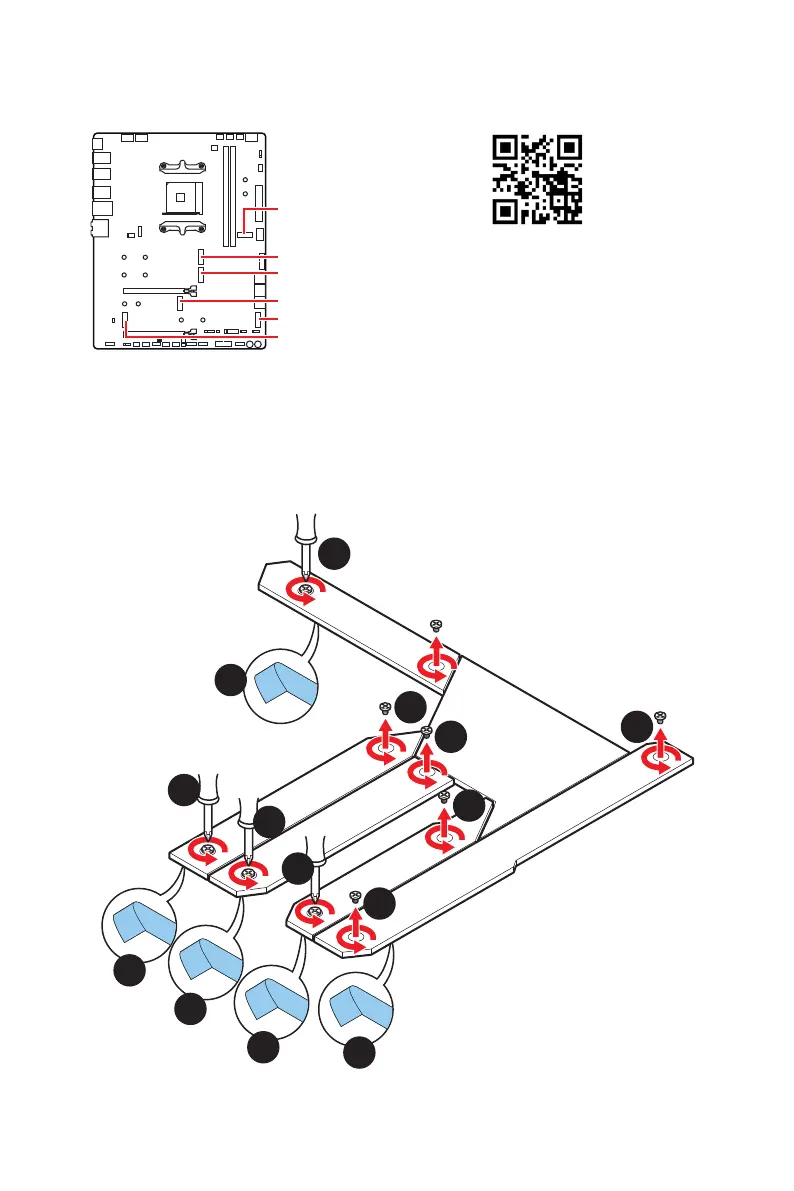

Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
1
1
1
1
1
1
1
1
1
M2_1 (CPU)
M2_3 (CPU)
M2_2 (Chipset)
M2_4 (CPU)
M2_6 (Chipset)
M2_5 (Chipset)
⚽
Video Demonstration
Watch the video to learn how to Install
M.2 SSD.
https://youtu.be/2UeWMgjwogU
M2_1
M2_2
M2_3
M2_4
M2_5&6
