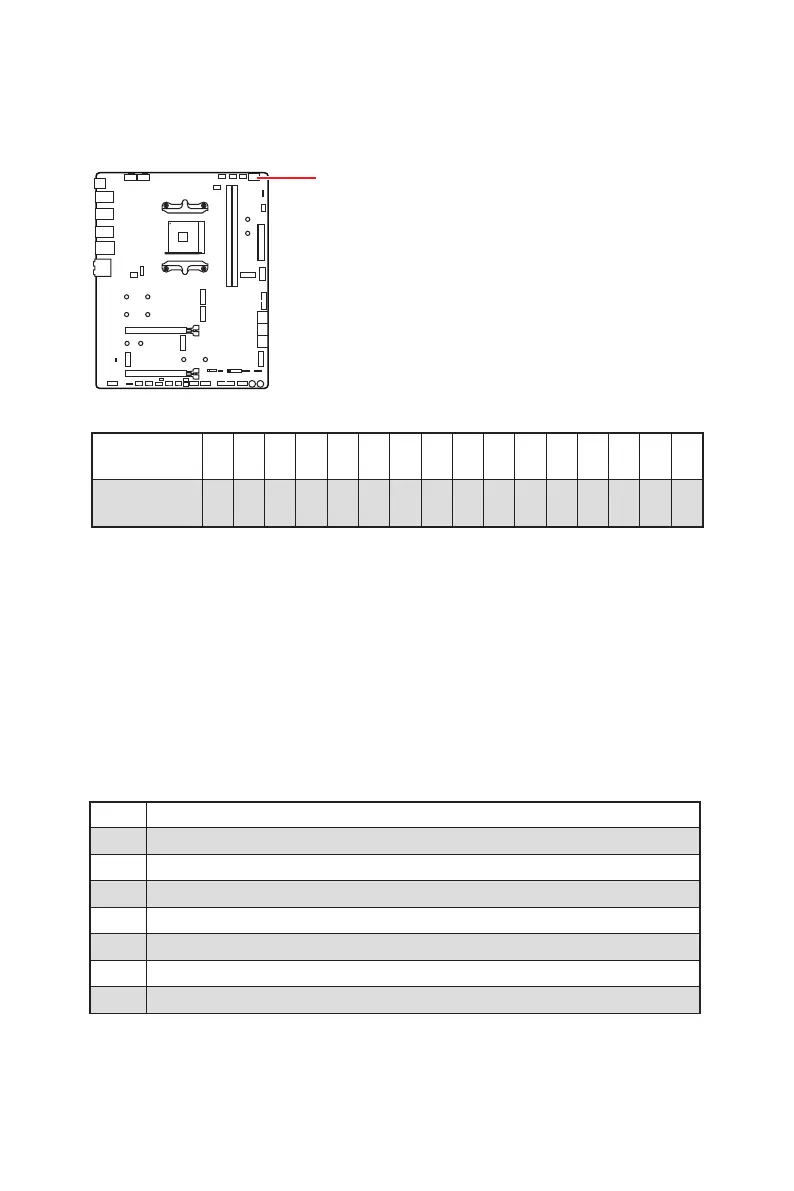

49
Onboard LEDs
Debug Code LED
Debug Code LED
The Debug Code LED displays progress and error codes during and after POST. Refer
to the Debug Code LED table for details.
Hexadecimal Character Table
Hexadecimal 0 1 2 3 4 5 6 7 8 9 A B C D E F
Debug Code
LED display
0 1 2 3 4 5 6 7 8 9 A B C D E F
Boot Phases
Security (SEC) – initial low-level initialization
Pre-EFI Initialization (PEI) – memory initialization
Driver Execution Environment (DXE) – main hardware initialization
Boot Device Selection (BDS) – system setup, pre-OS user interface & selecting a
bootable device (CD/DVD, HDD, USB, Network, Shell, …)
Debug Code LED Table
SEC Progress Codes
01 Power on. Reset type detection (soft/hard)
02 AP initialization before microcode loading
03 System Agent initialization before microcode loading
04 PCH initialization before microcode loading
06 Microcode loading
07 AP initialization after microcode loading
08 System Agent initialization after microcode loading
09 PCH initialization after microcode loading

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI MEG X570S UNIFY-X MAX and is the answer not in the manual?

MSI MEG X570S UNIFY-X MAX Specifications

General IconGeneral
Processor socketSocket AM4
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors1
Non-ECCYes
Memory channelsDodeca-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR4-SDRAM
Maximum internal memory64 GB
Supported memory clock speeds1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4533, 4600, 4733, 4800, 4866, 5000, 5100, 5300 MHz
RAID levels0, 1, 10
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express, PCI Express 3.0, PCI Express 4.0, SATA III
Parallel processing technology supportCrossfire
Number of SATA III connectors6
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
LAN controllerRealtek RTL8125
Ethernet interface type2.5 Gigabit Ethernet
Audio chipRealtek ALC4080
Cooling typeActive
Component forPC
Motherboard chipsetAMD X570
Audio output channels7.1 channels
Motherboard form factorATX
Windows operating systems supportedWindows 10 x64
BIOS typeUEFI AMI
System Management BIOS (SMBIOS) version3.4
Harmonized System (HS) code84733020
Weight and Dimensions IconWeight and Dimensions
Depth244 mm
Width305 mm
