43

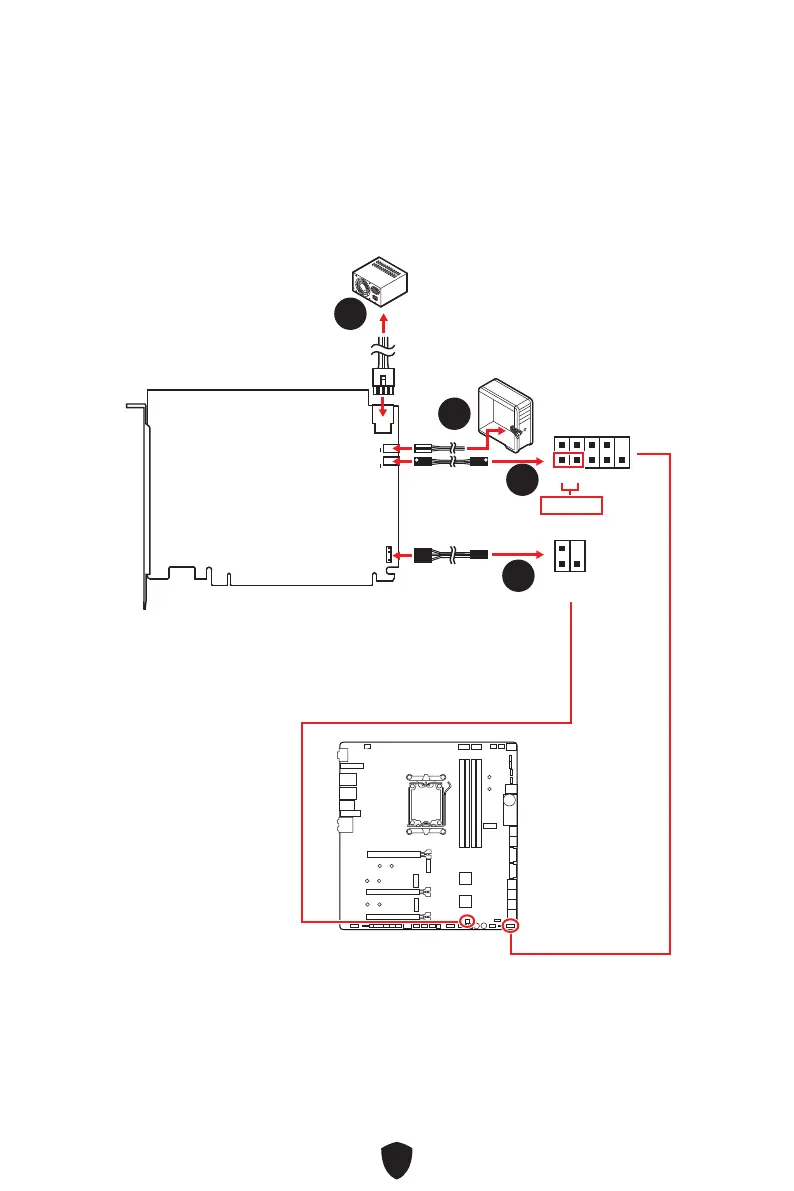

9. Connect the PCIE_PWR1 to the power supply.
10. Connect the HDD LED cable supplied with your case to the JCASE connector.
11. Use the HDD LED cable supplied with M.2 Xpander-Z Gen 5 Dual card to connect
the JMB connector and JFP1’s HDD pins (pin 1 & pin3).
12. Use the JSMB cable supplied with this card to connect the JSMB connector and
JSMB1 connector. And then you can set the fan duty cycle and the M.2 temperature
LED color in BIOS.
+
+
99
1010
1111
1212
PCIE_PWR1
JFP1
HDD LED
JSMB1
+ -
JCASE
JMB
JSMB
To Next Page
