42
Overview of Components

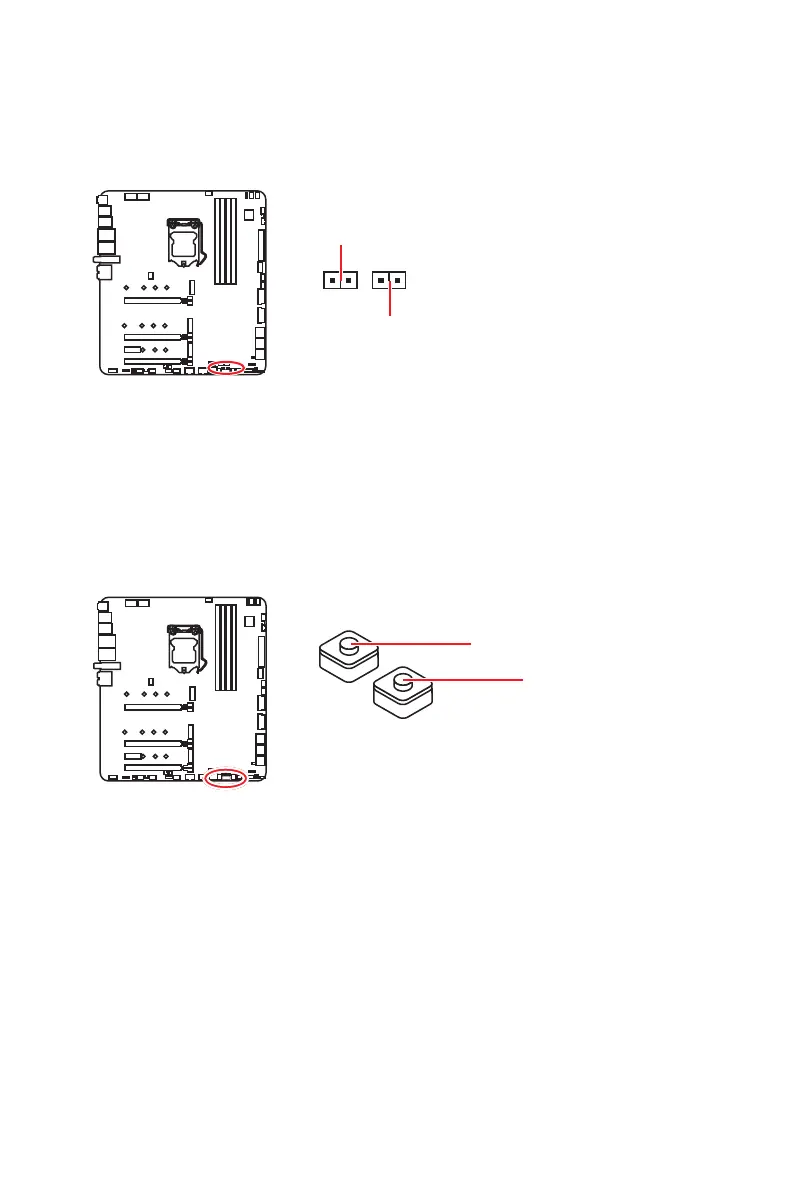

OC_RT1: OC Retry Button
When you press and hold this button, the system will keep retrying OC items until it
boot up successfully.
OC_FS1: OC Fail Save Button
When you press this button, the system will be restarted and be forced into BIOS with
the previous setting and without showing the OC_FAIL message.
OC_FS1
OC_RT1
JBLK_U1, JRATIO_U1: Base clock Plus, Ratio Plus connectors
You can use these connectors to connect the external buttons. Press the button
connecting to JBLK_U1 to increase the CPU base clock or press the button connecting
to JRATIO_U1 to increase the CPU ratio.
JBLK_U1
JRATIO_U1 (Short the jumper to increase
the CPU ratio)
(Short the jumper to increase
the CPU base clock)
