Overview of Components
DYNAMIC DASHBOARD II
The DYNAMIC DASHBOARD II can be used to display system information, CPU
temperature, CPU speed, BIOS flash status and error message. You can use MSI’s
software to configure and customize the DYNAMIC DASHBOARD II and even upload a
.gif animation file.
DYNAMIC DASHBOARD II
⚠
Important
For information on configuration and customization DYNAMIC DASHBOARD, please
refer to http://download.msi.com/manual/mb/DRAGONCENTER2.pdf for more details.
System Status
DYNAMIC
DASHBOARD
Power On
CPU is not
detected or fail
DRAM is not
detected or fail
GPU is not
detected or fail
Enter the OS
S3 (Suspend to
RAM)
S4/S5
(Suspend
to Disk/
Shutdown)
System Status
DYNAMIC
DASHBOARD
Flashback
BIOS (Update)
Flashback
BIOS (Finish)
Flashback
BIOS (Error)
Fan Speed/
Temperature/
Voltage
User profile
176*48px .gif

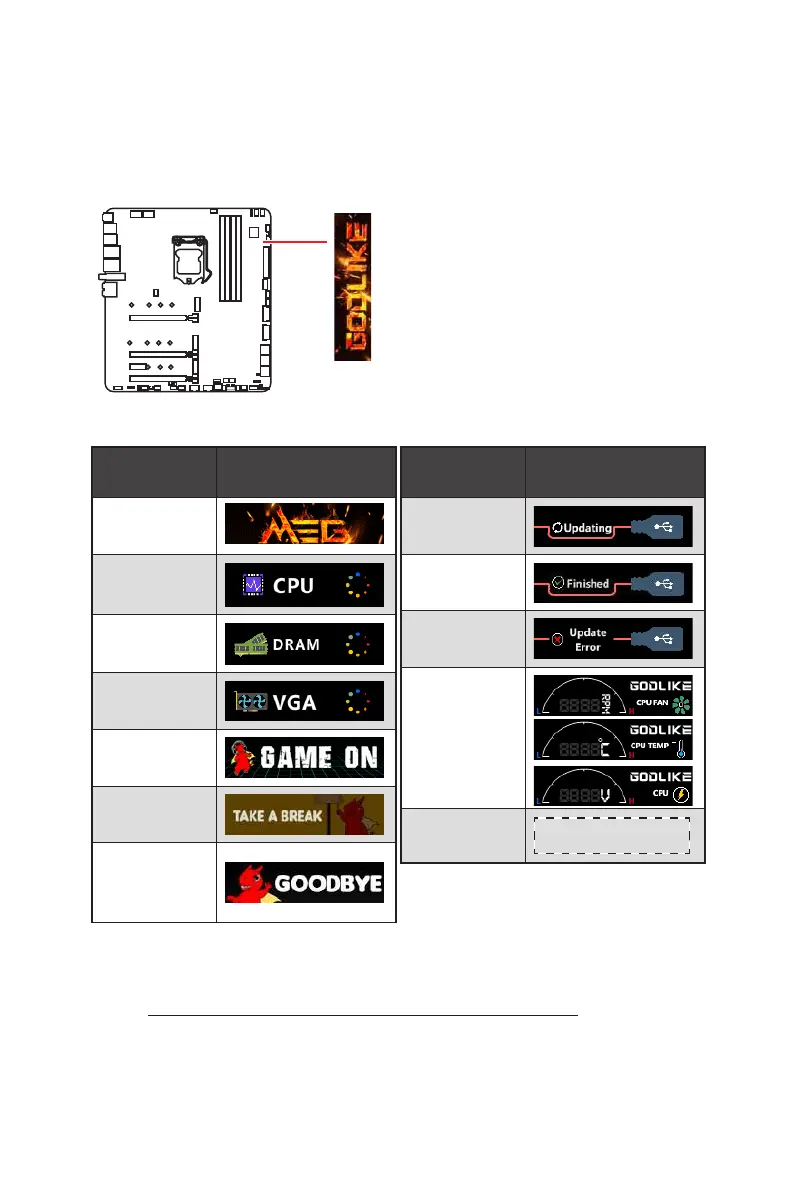

DYNAMIC DASHBOARD II Status Table
