MSI MS-6567 User Manual

Chapter 2
2-8

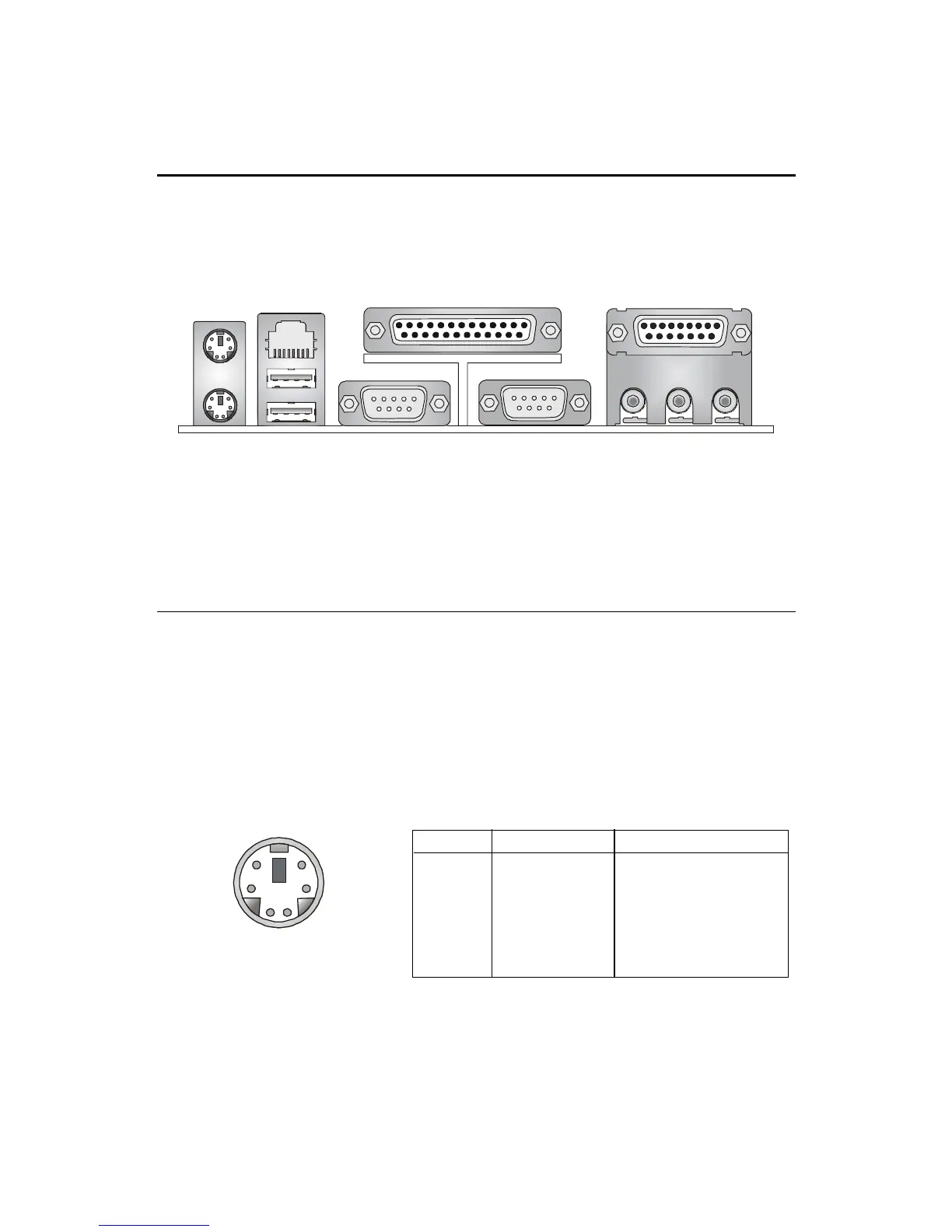

The Back Panel provides the following connectors:
Back Panel
Mouse Connector
The mainboard provides a standard PS/2
®
mouse mini DIN connector for
attaching a PS/2
®
mouse. You can plug a PS/2
®
mouse directly into this
connector. The connector location and pin assignments are as follows:
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
PS/2 Mouse (6-pin Female)
2
1
3
4
5
6
Mouse
Keyboard USB
Parallel
COM A COM B L-out L-in MIC
Midi/Joystick
LAN
(Optional)

MSI MS-6567 Specifications

General

Model	MS-6567
Form Factor	ATX
Socket Type	Socket 478
Memory Type	DDR SDRAM
Max Memory	2 GB
AGP	1 x AGP 4x
Onboard Audio	Yes
Audio	AC'97
Onboard LAN	Yes
LAN	10/100 Mbps
Supported CPUs	Intel Pentium 4
Memory Slots	2
Storage Interfaces	2 x IDE
USB Ports	4
Chipset	Intel 845
