1-8
Chapter 1
VGA Port

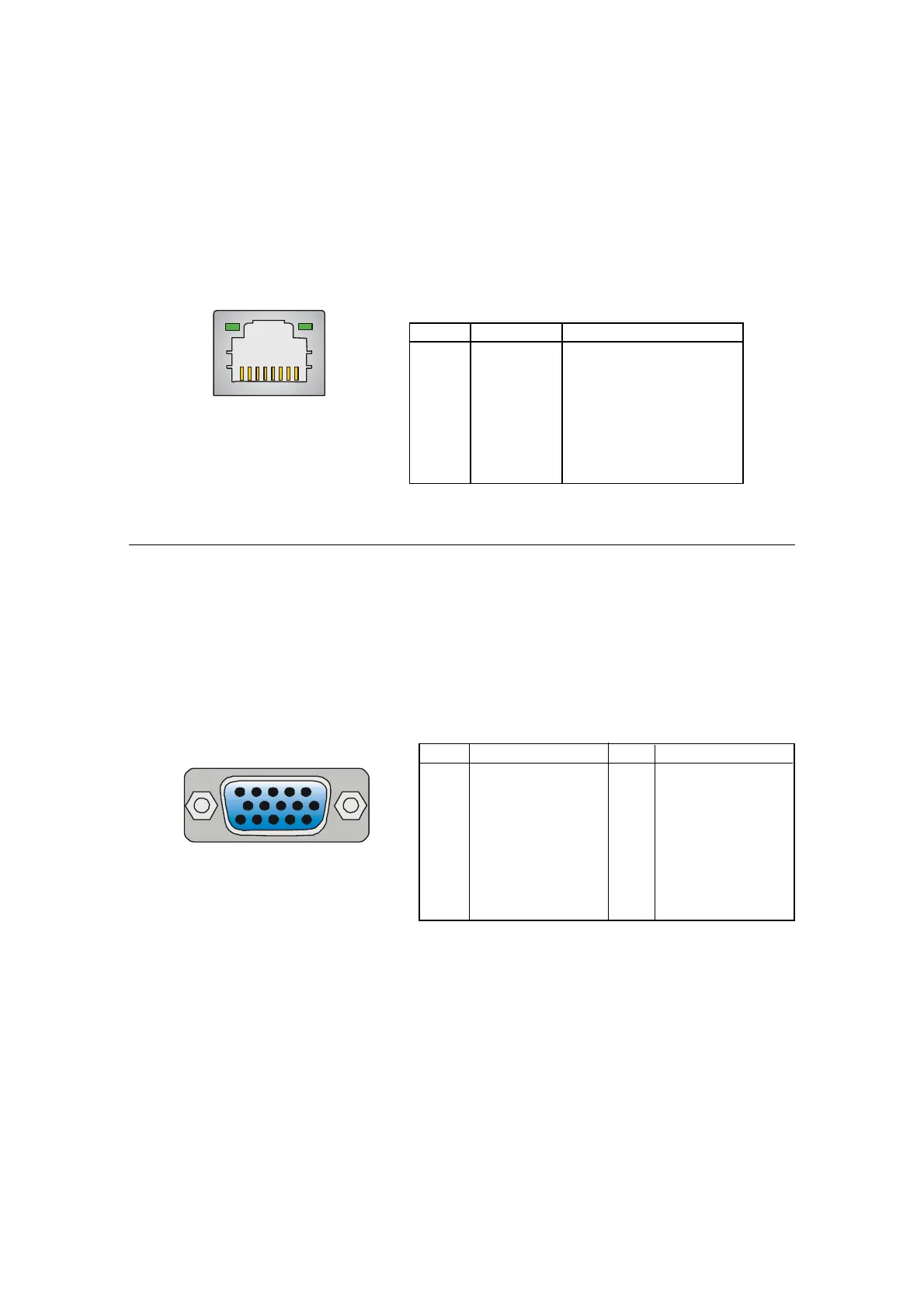

The mainboard provides one DB 15-pin female connector to connect a VGA
monitor.
DB 15-Pin Female Connector
5 1
15 11
Pin Signal Description Pin Signal Description
1 RED 2 GREEN
3 BLUE 4 N/C
5 GND 6 GND
7 GND 8 GND
9 +5V 10 GND
11 N/C 12 SDA
13 Horizontal Sync 14 Vertical Sync
15 SCL
RJ45 LAN Jack
The mainboard provides one standard RJ-45 jack for connection to Local Area Net-
work (LAN). You can connect a network cable to the LAN jack.
Pin Definition
PIN SIGNAL DESCRIPTION
1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used
To Next Page
