1-9
Mainboard Hardware
Audio Port Connectors
The left 3 audio jacks are for 2-channel mode for stereo speaker output: Line Out is
a connector for Speakers or Headphones. Line In is used for external CD player,
Tape player, or other audio devices. Mic is a connector for stereo microphone.
However, there is an advanced audio application provided by CMI9761A to offer
support for 5.1-channel audio operation and can turn rear audio connectors from
2-channel to 4-/5.1-channel audio.

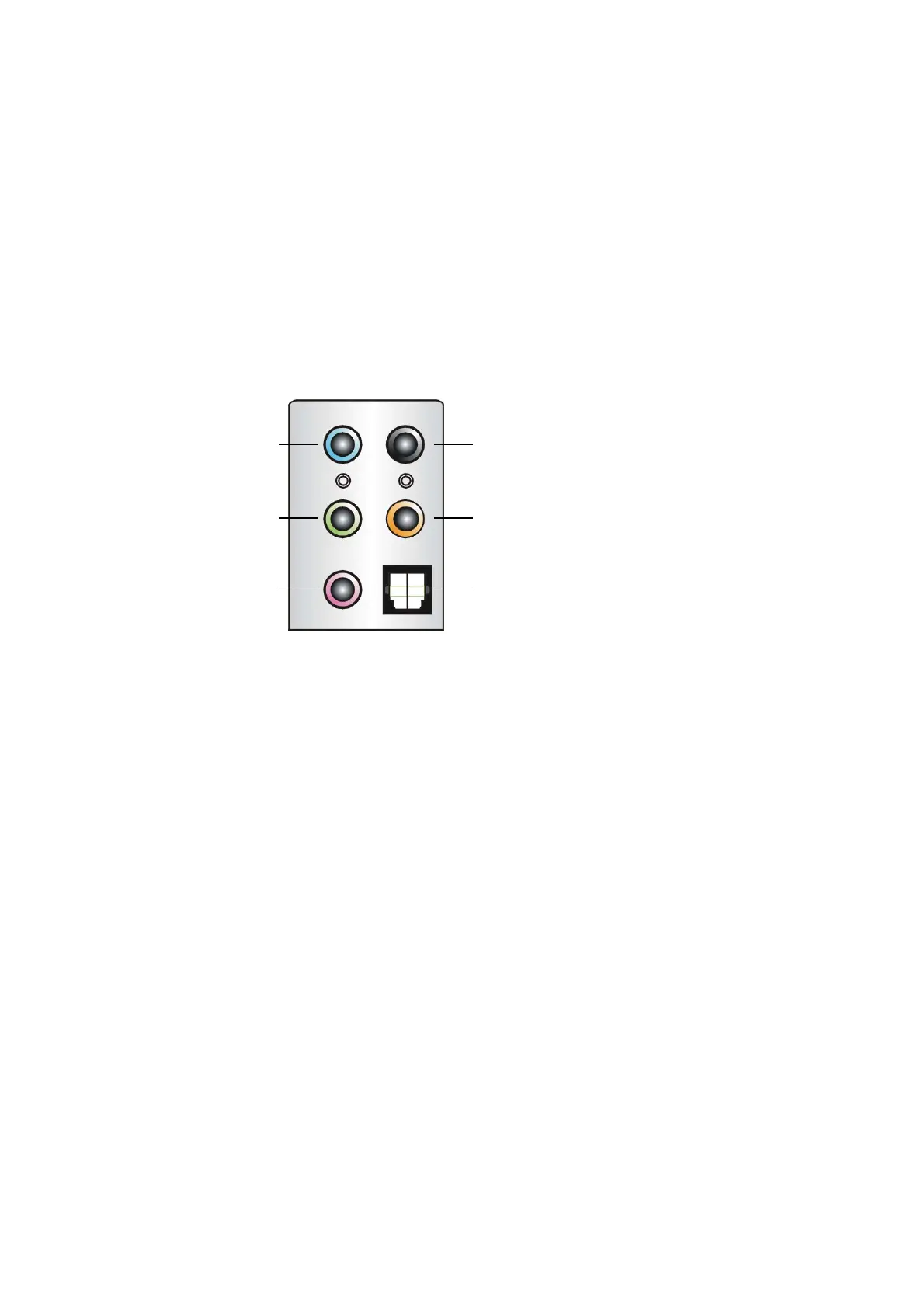

Rear Speaker Out
(in 5.1CH)
Line Out
Line In
MIC
Center/Subwoofer Speaker Out
( in 5.1CH)
S/PDIF Out-Optical
