Mainboard Hardware
1.2 CPU
This mainboard supports Intel
®
P4 Northwood up to 3.2GHz and Prescott up to
3.4GHz. The mainboard uses a CPU socket called PGA478 for easy CPU installation.
When you are installing the CPU, make sure the CPU has a heat sink and a cooling fan
attached on the top to prevent overheating. Remember to peel off the sticker before
you install the CPU cooler. For information on how to install the CPU and cooler, refer
to Quick Installation Guide.
The mainboard provides 2 slots for 184-pin DDR SDRAM
DIMM (Double In-Line Memory Module) modules and supports the
memory size up to 2GB. You can install DDR400/DDR333/DDR266
modules into the DDR DIMM slots.
1.3 Memory

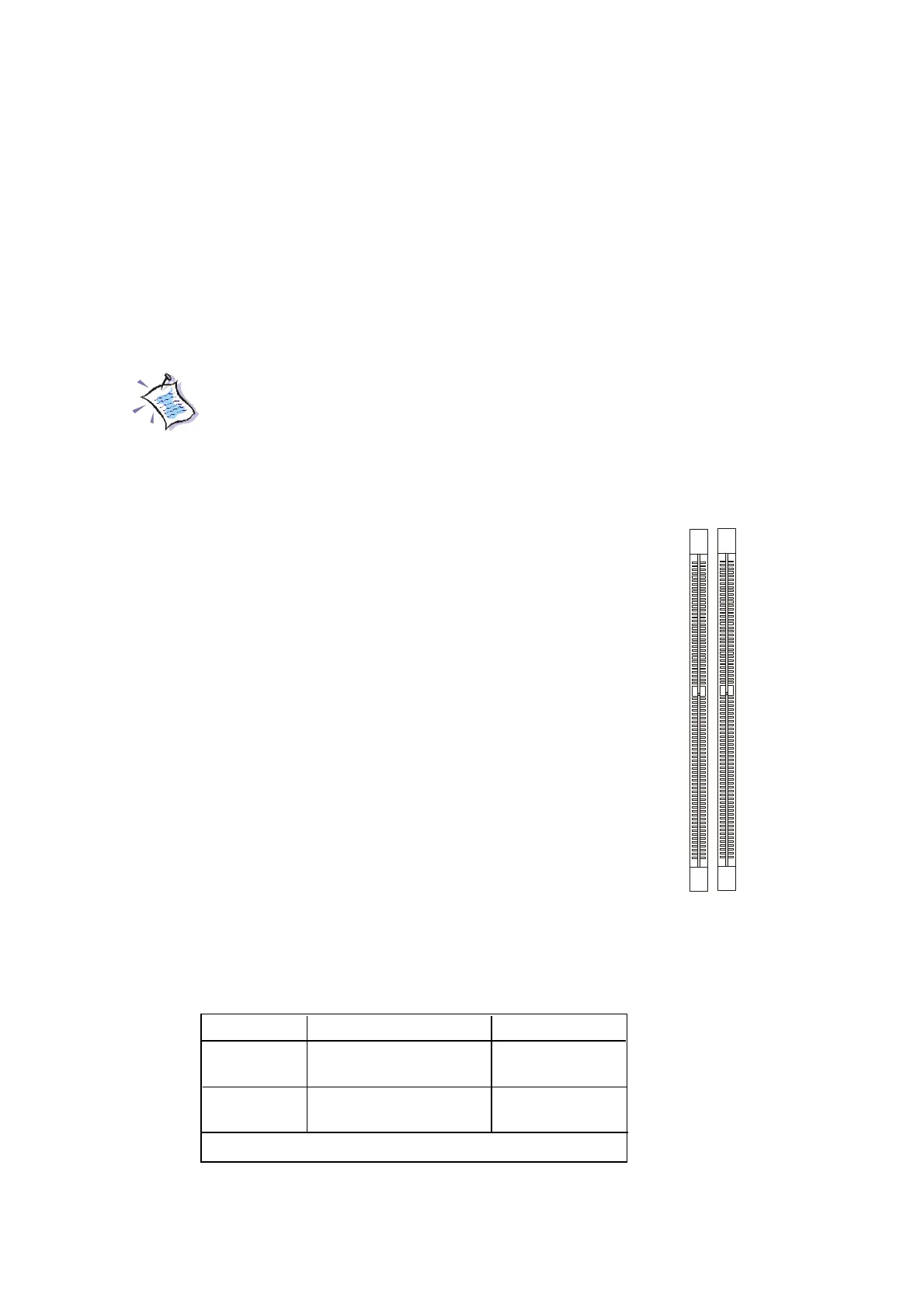

DIMM1
DIMM2
Note:
1. Read the instructions on the cooler before you start the installation.
2. Overheating will seriously damage the CPU and system, always make
sure the cooling fan can work properly to protect the CPU from overheating.
DIMM Module Combination
Install at least one DIMM module on the slots. You can install either single- or
double-sided modules in any order to meet your own needs. Memory modules can be
installed in any combination as follows:
S: Single Side
D: Double Side
Slot Memory Module Total Memory
DIMM 1 DDR S/D 64MB~1GB
(Bank 0 & 1)
DIMM 2 DDR S/D 64MB~1GB
(Bank 2 & 3)
Maximum System Memory Supported 64MB~2GB
