nVIDIA RAID Introduction
NVRAID Striped Array

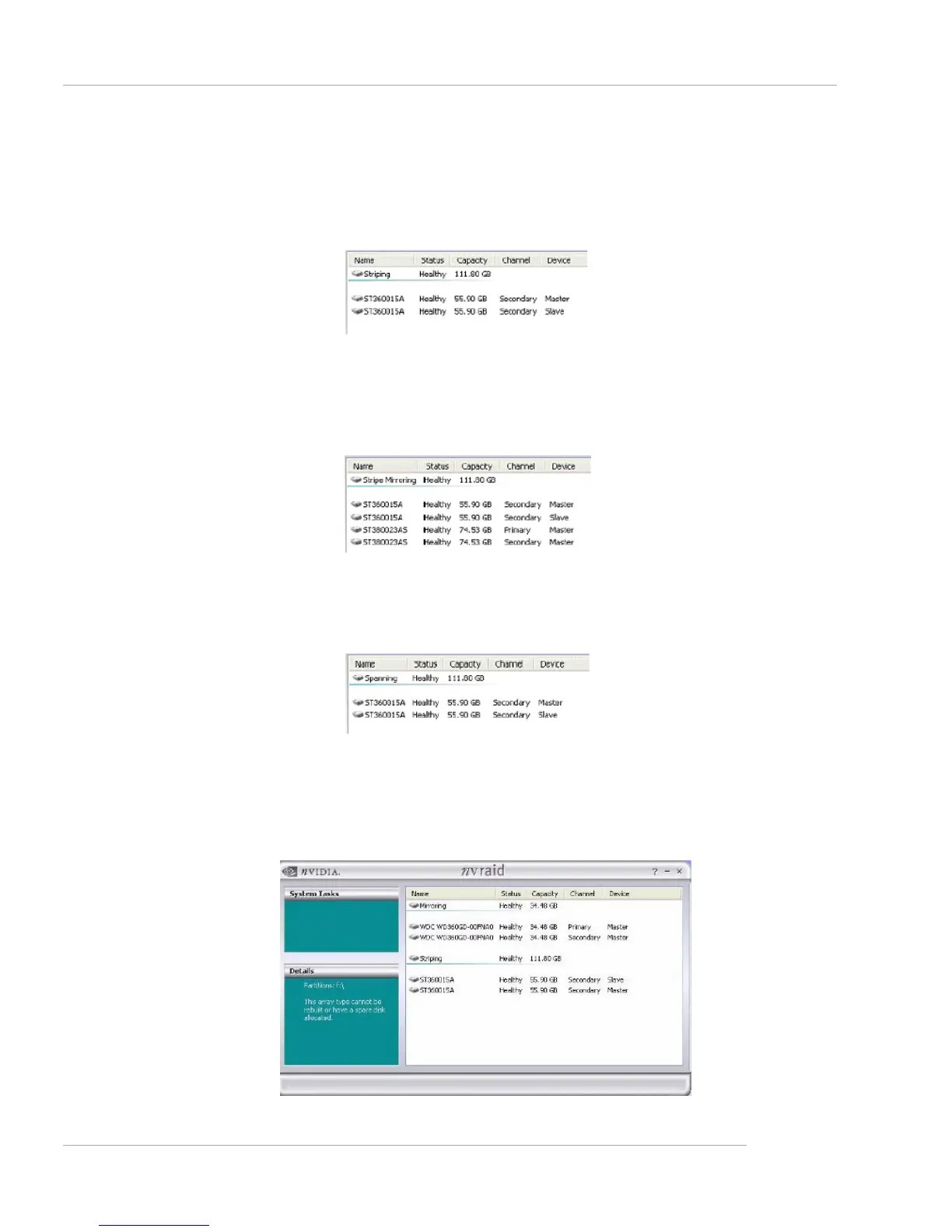

The figure below shows an example of a two hard drive striped array using identical
55.90 GB IDE hard drives (ST360015A), where one drive is configured as Master
and the other drive is configured as Slave. The total disk space used is 111.80 GB.
NVRAID Striped Mirror Array
The figure below shows an example of a four hard drive stripe-mirrored array. The
total disk space used is 111.80 GB.
NVRAID Spanning (JBOD) Array
The figure below shows an example of a two hard drive spanning array. The total
disk space used is 111.80 GB.
NVRAID Mirrored Array and a Striped Array
The figure below shows an example of a two hard drive mirrored array as well as a
two hard drive striped array.
