2-9
Hardware Setup

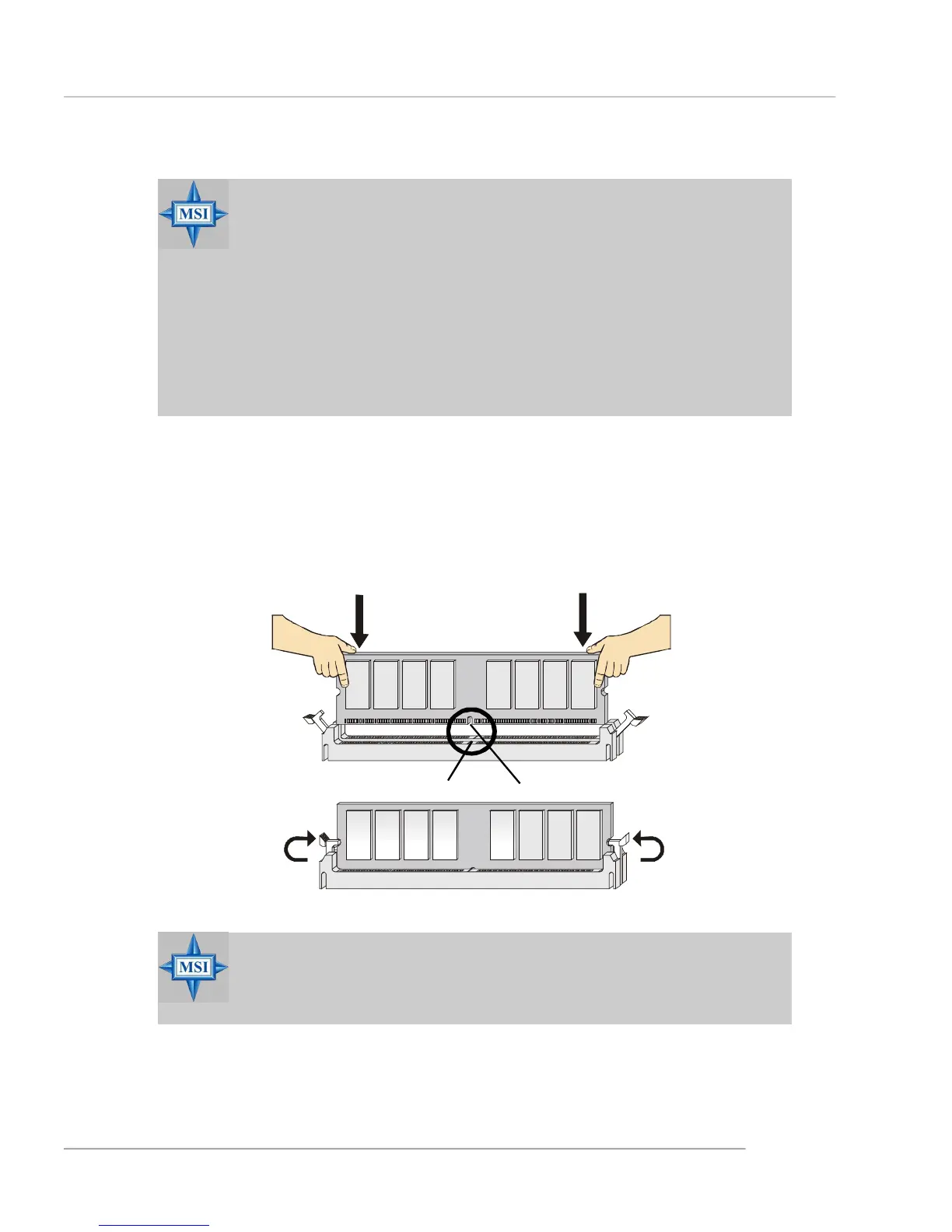

Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module will only
fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until
the golden finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
Volt
Notch
MSI Reminds You...
You can barely see the golden finger if the module is properly in-
serted in the socket.
MSI Reminds You...
1. The maximum memory speed decreases when the following two
Memory Combination is selected (you can also refer to the Rec-
ommended Memory Combination list shown in the previous page:
-Each channel is installed with two double-sided memory mod-
ules
-Both DIMM1 and DIMM3 slots are installed with double-sided
memory module.
2. Due to the South Bridge resource deployment, the system den-
sity will only be detected up to 3+GB (not full 4GB) when each
DIMM is installed with an 1GB memory module.
To Next Page
