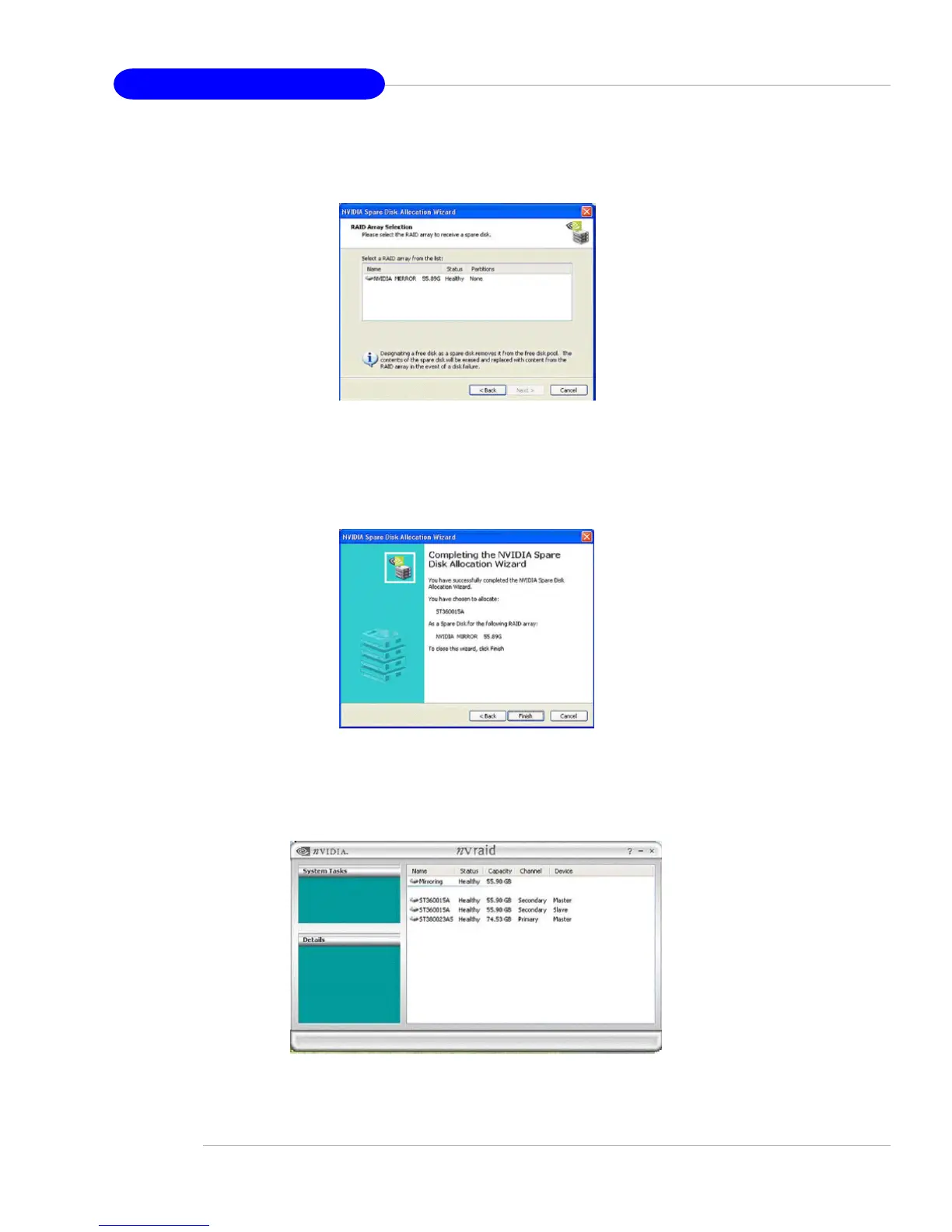

5-16
MS-7125 ATX Mainboard
3. Click Next.
The RAID Array Selection page appears.
4. From the RAID Array Selection page, select one of the arrays from the list.
This is the array to which you want to allocate the dedicated free disk.
5. Click Next.
The Completing the NVIDIA Spare Disk Allocation page appears.
6. Click Finish.
As shown in figure below, the ST380023AS drive is now a dedicated free disk in the
mirrored array. If a system crash occurs that causes any of the two ST360015A
drives to fail, the ST380023AS hard drive will take over and be used in the newly
formed mirrored array.
Once a dedicated disk has been assigned to a particular array, it can be removed at
any time. To remove the disk, right click on the dedicated disk and select the option to
remove it.
