2-13
Hardware Setup

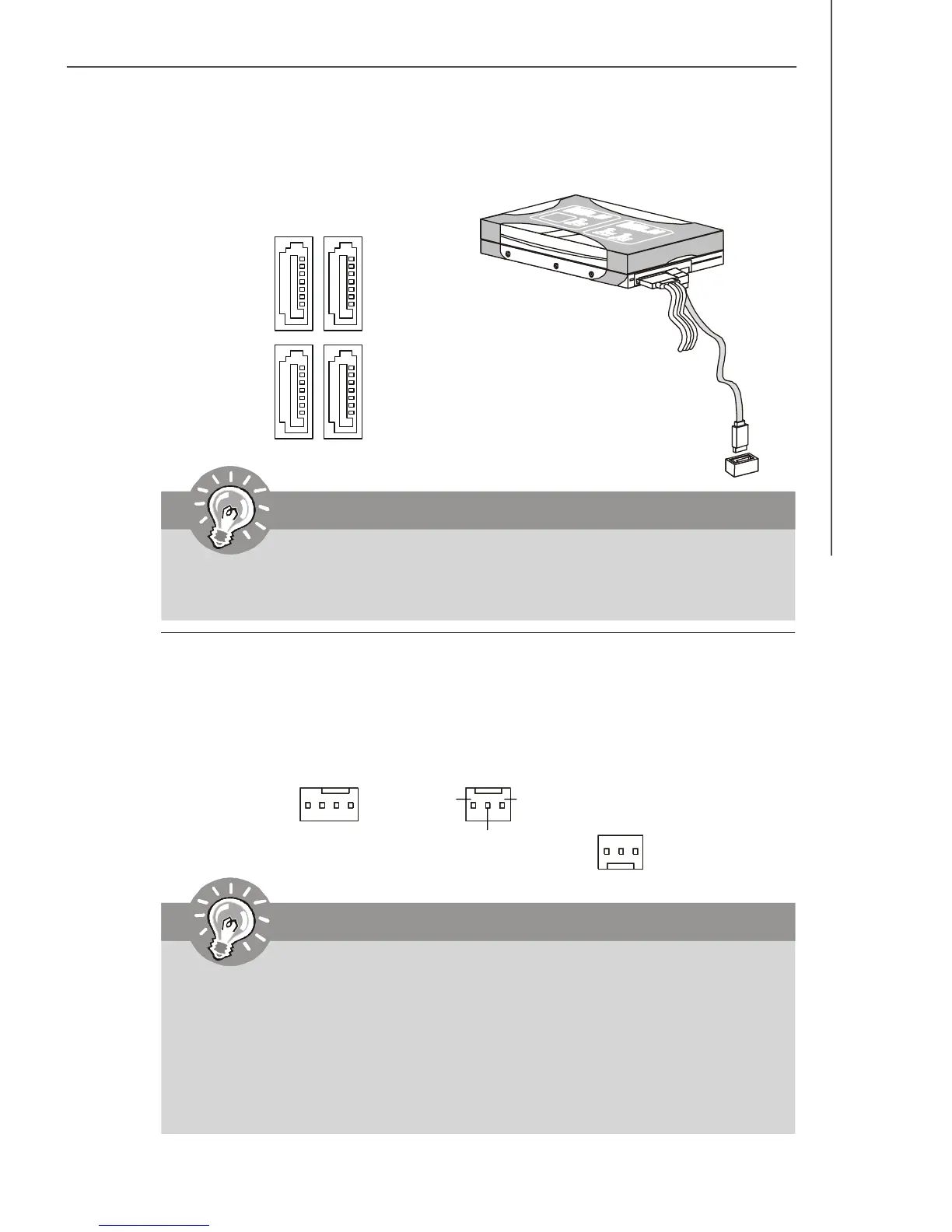

Serial ATA Connector: SATA1/ SATA2/ SATA3/ SATA4
This connector is a high-speed Serial ATA interface port. Each connector can con-
nect to one Serial ATA device.
Important
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data
loss may occur during transmission.
Fan Power Connectors: CPUFAN1/ SYSFAN1/ SYSFAN2 / SYSFAN3
The fan power connectors support system cooling fan with +12V. When connecting
the wire to the connectors, always note that the red wire is the positive and should
be connected to the +12V; the black wire is Ground and should be connected to GND.
If the mainboard has a System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of the CPU fan control.
SYSFAN2
SYSFAN1
SYSFAN3
CPUFAN1
SENSOR
+12V
GND
SENSOR
+12V
GND
SENSOR
+12V
GND
Control
SATA4SATA3
SATA2SATA1
Important
1. Please refer to the recommended CPU fans at processor’s official website
or consult the vendors for proper CPU cooling fan.
2. Fan cooler set with 3 or 4 pins power connector are both available for
CPUFAN1.
3. CPUFAN1 supports fan control. You can setup it in H/W Monitor of BIOS
Setup. You can install Dual Core Center utility that will automatically con-
trol the CPU fan speed according to the actual CPU temperature.
