En-16
MS-7522 Mainboard
Connectors

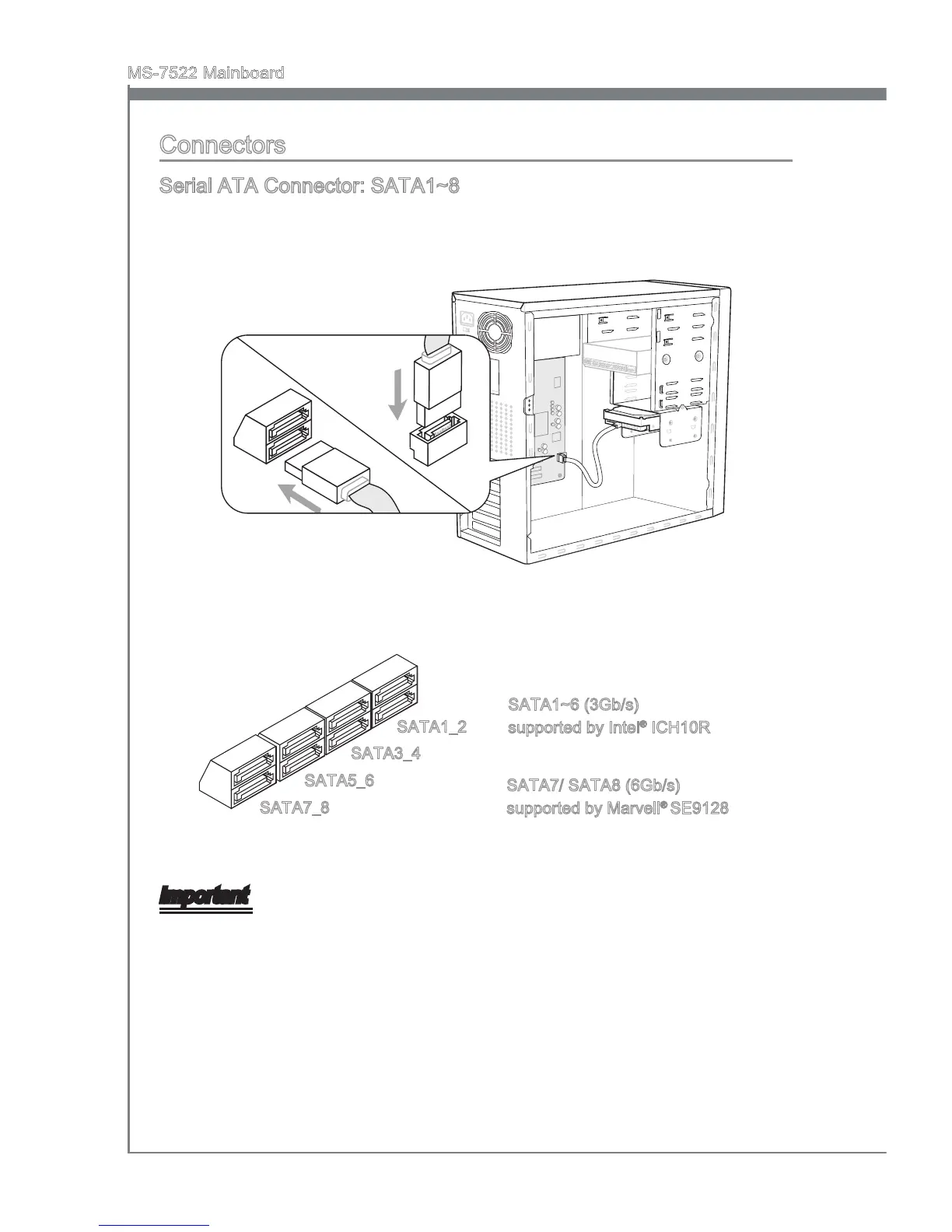

Serial ATA Connector: SATA1~8
This connector is a high-speed Serial ATA interface port. Each connector can connect
to one Serial ATA device.
* The MB layout in this gure is for reference only.
SATA5_6
SATA3_4
SATA1_2
SATA1~6 (3Gb/s)
supported by Intel
®
ICH10R
SATA7/ SATA8 (6Gb/s)
supported by Marvell
®
SE9128
SATA7_8
Important
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may
occur during transmission.
