MSI MS-7596 (v1.x) User Manual

BIOS Setup ▍
MS-7596
3-25
BIOS Setup ▍
MS-7596
Important

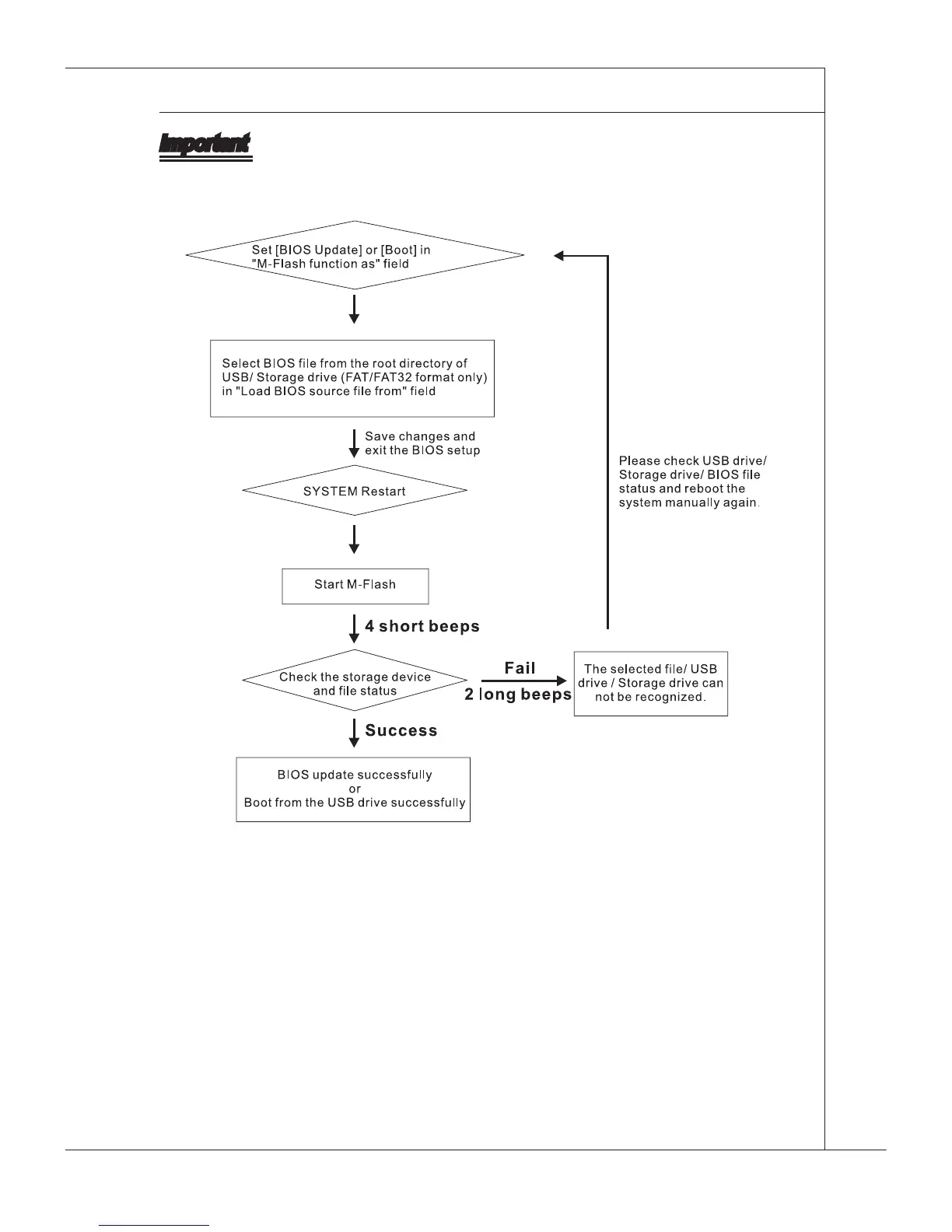

Please refer to the block dagram below about the M-Flash functon.
Due to the specal desgn of some graphcs cards wll cause dark screen durng M-
󰘱ash operaton, and you may refer the beeps from the system to con󰘰rm the current
M-󰘱ash process.
•
•

MSI MS-7596 (v1.x) Specifications

General

Model	MSI MS-7596 (v1.x)
Form Factor	Micro ATX
Memory Type	DDR3
Maximum Memory	16GB
PCIe 2.0 x16 Slots	1
Storage Interface	6 x SATA 3Gb/s
RAID Support	No
Memory Slots	4 x DIMM
Memory Standard	DDR3 1333/1066
USB Ports	12 x USB 2.0
Audio	Realtek ALC889
LAN	Realtek RTL8111DL
