Intalze logcal drve, zero the dsk drves. RAID 1 or 10 only.
Strpe Block Sze, the default 64KB s best for most applcatons. RAID 0 or 10
only.
Ggabyte Boundary, allows use of slghtly smaller replacement drves.
Cache Mode, WrteThru or WrteBack.
■
■
■
■

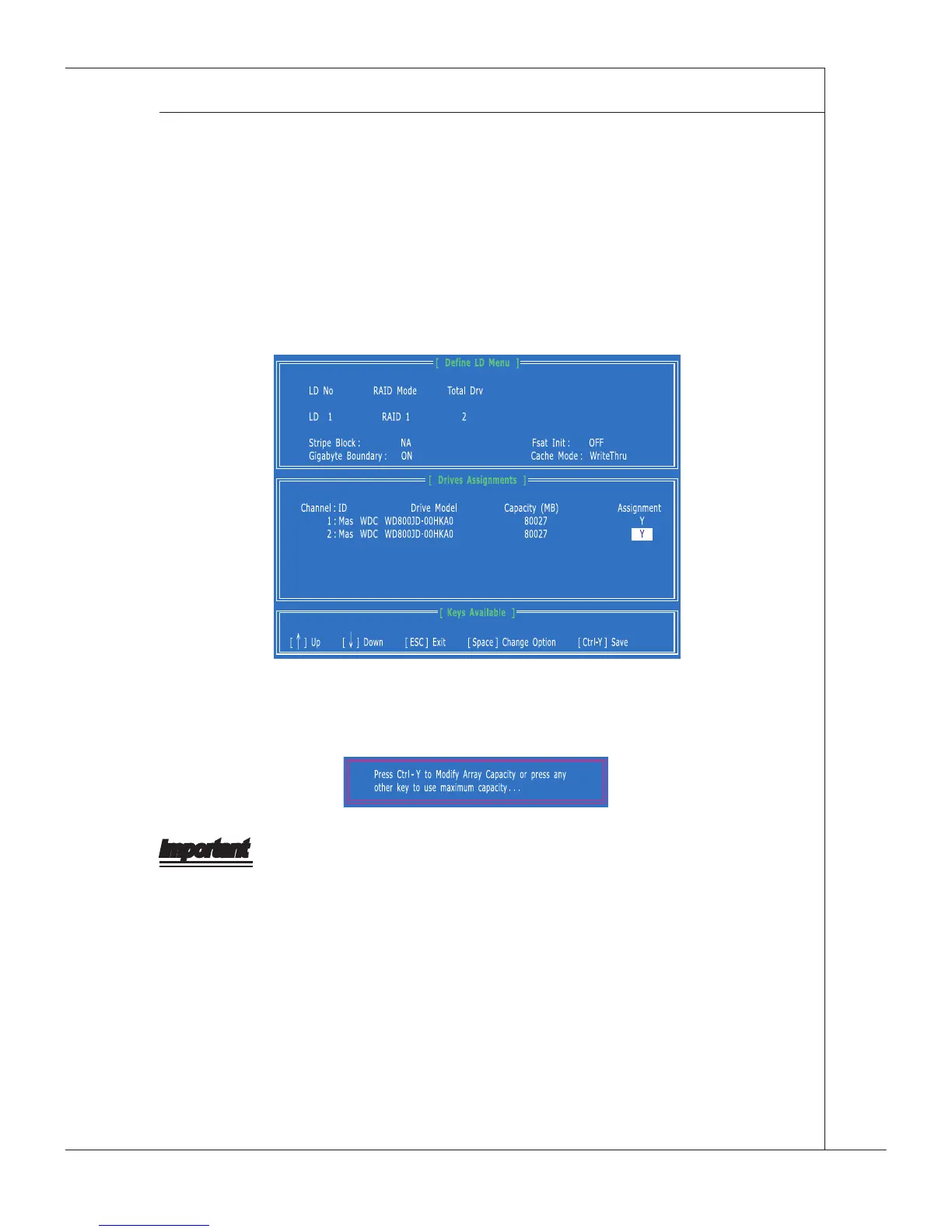

On the Drves Assgnments wndow, use the arrow key to choose the hard drves
whch you want to make part of the LD, use the space key to change the assgnment
to “Y”. Then press [Ctrl+Y] to save the con󰘰guraton.
4.
A message wll show up on the bottom, press any key to save the con󰘰guraton or
press [Ctrl-Y] to allocate the RAID capacty manually.
5.
Important
The default capacty s the full capacty of the selected hard drves.
If you allocate the 󰘰rst LD capacty manually, you can create second LD wth reman
-
ng capacty of the selected hard drves.
•
•
