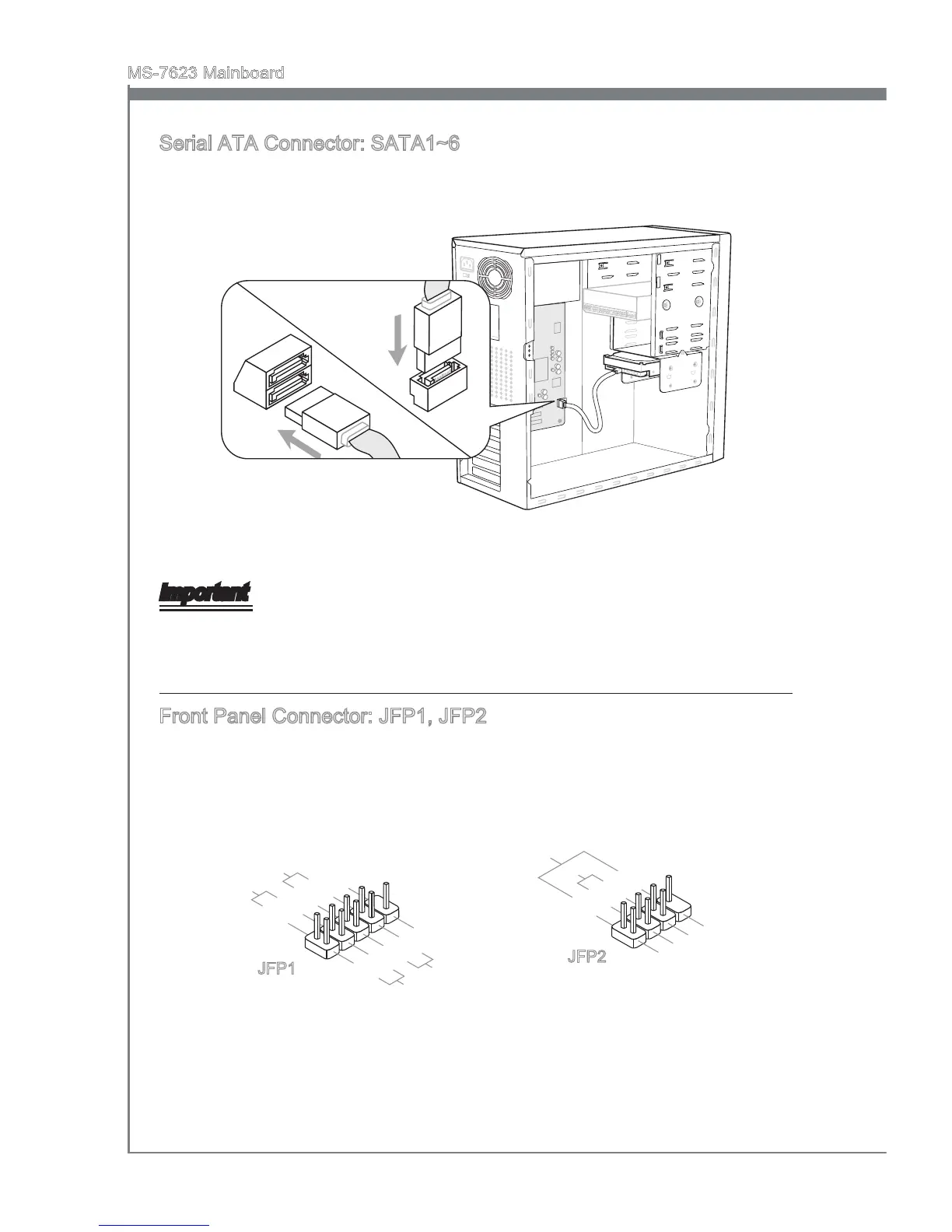

MS-7623 Mainboard
Serial ATA Connector: SATA1~6
This connector is a high-speed Serial ATA interface port. Each connector can connect
to one Serial ATA device.
* The MB layout in this gure is for reference only.
Important
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may
occur during transmission.
Front Panel Connector: JFP1, JFP2
This connector is for electrical connection to the front panel switches and LEDs. The
JFP1 is compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
