En-13
English

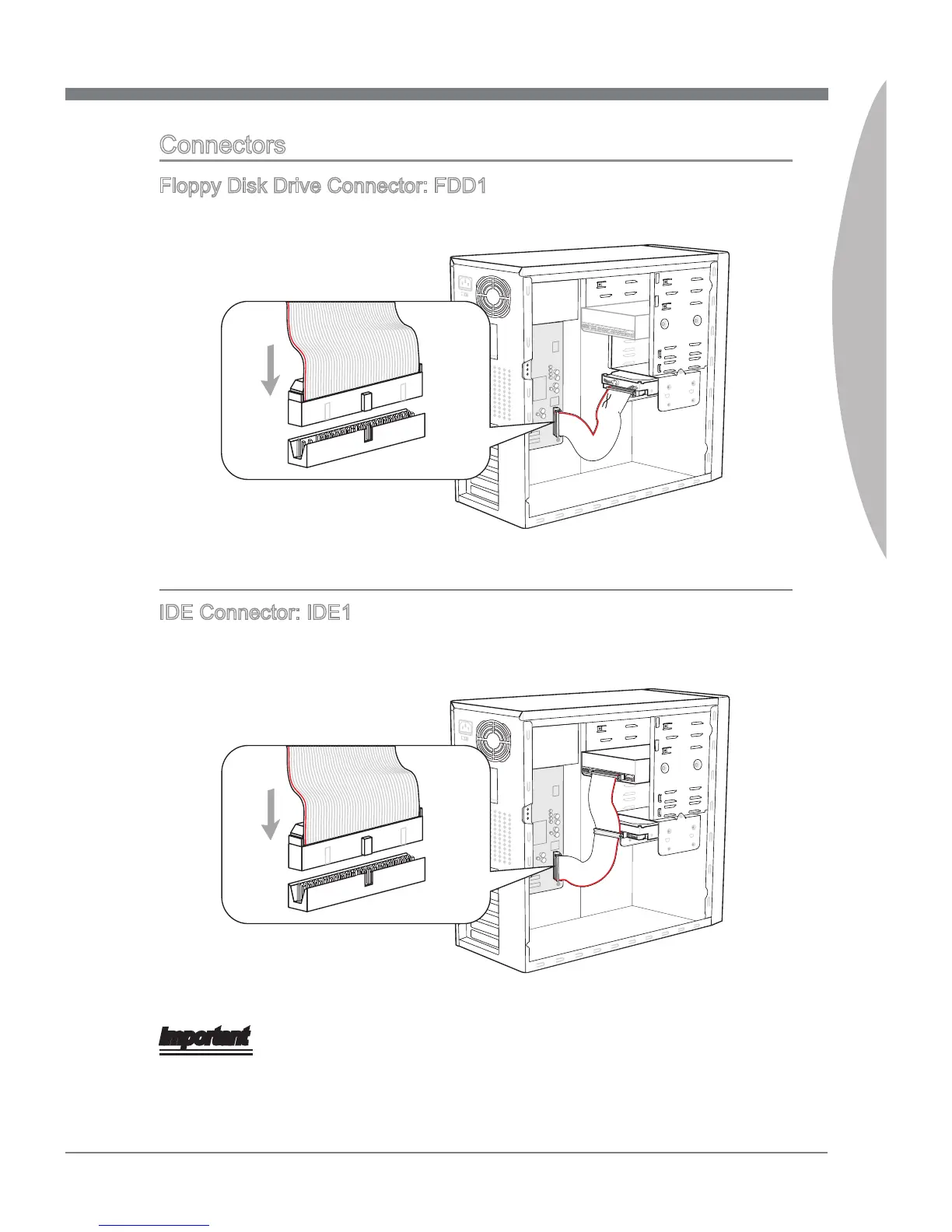

Connectors
Floppy Disk Drive Connector: FDD1
This connector supports 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB oppy disk drive.
* The MB layout in this gure is for reference only.
IDE Connector: IDE1
This connector supports IDE hard disk drives, optical disk drives and other IDE de-
vices.
* The MB layout in this gure is for reference only.
Important
If you install two IDE devices on the same cable, you must congure the drives sepa-
rately to master / slave mode by setting jumpers. Refer to IDE device’s documentation
supplied by the vendors for jumper setting instructions.
