Realtek Audio
MS-7666
Appendix A
Realtek Audio
MS-7666
Appendix A
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly in the software
utility, connect your speakers to the correct phone jacks in accordance with the setting
in software utility.

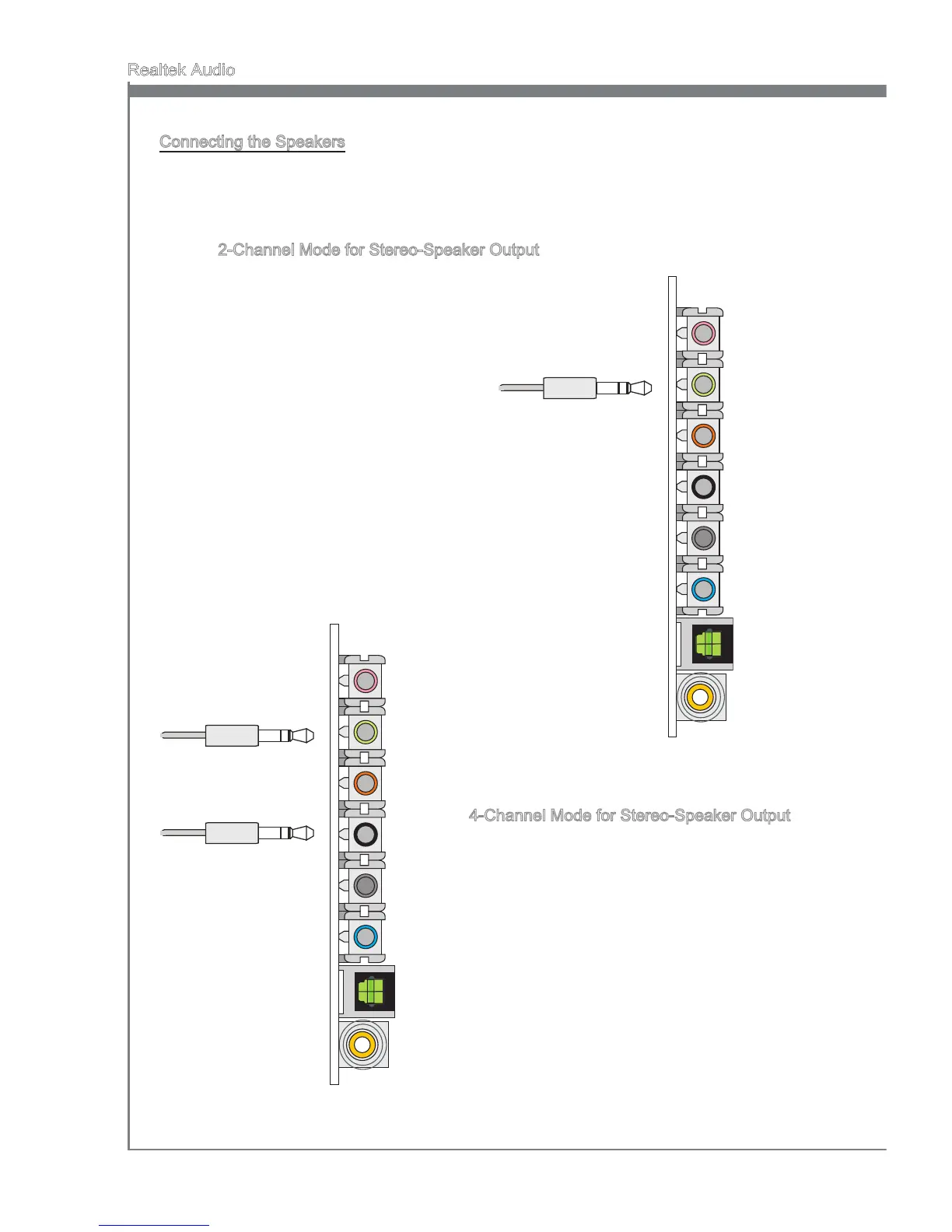

2-Channel Mode for Stereo-Speaker Output
MIC
Line Out (Front channels)
No function
No function
No function
Line In
S/PDIF Out - Optical
S/PDIF Out - Coaxial
■
1]
2]
3]
4]
5]
6]
7]
8]
1
2
3
4
5
6
7
8
4-Channel Mode for Stereo-Speaker Output
MIC
Line Out (Front channels)
No function
Line Out (Rear channels)
No function
Line In
S/PDIF Out - Optical
S/PDIF Out - Coaxial
■
1]
2]
3]
4]
5]
6]
7]
8]
1
2
3
4
5
6
7
8
