A-5
Realtek Audio
MS-7666
Appendix A

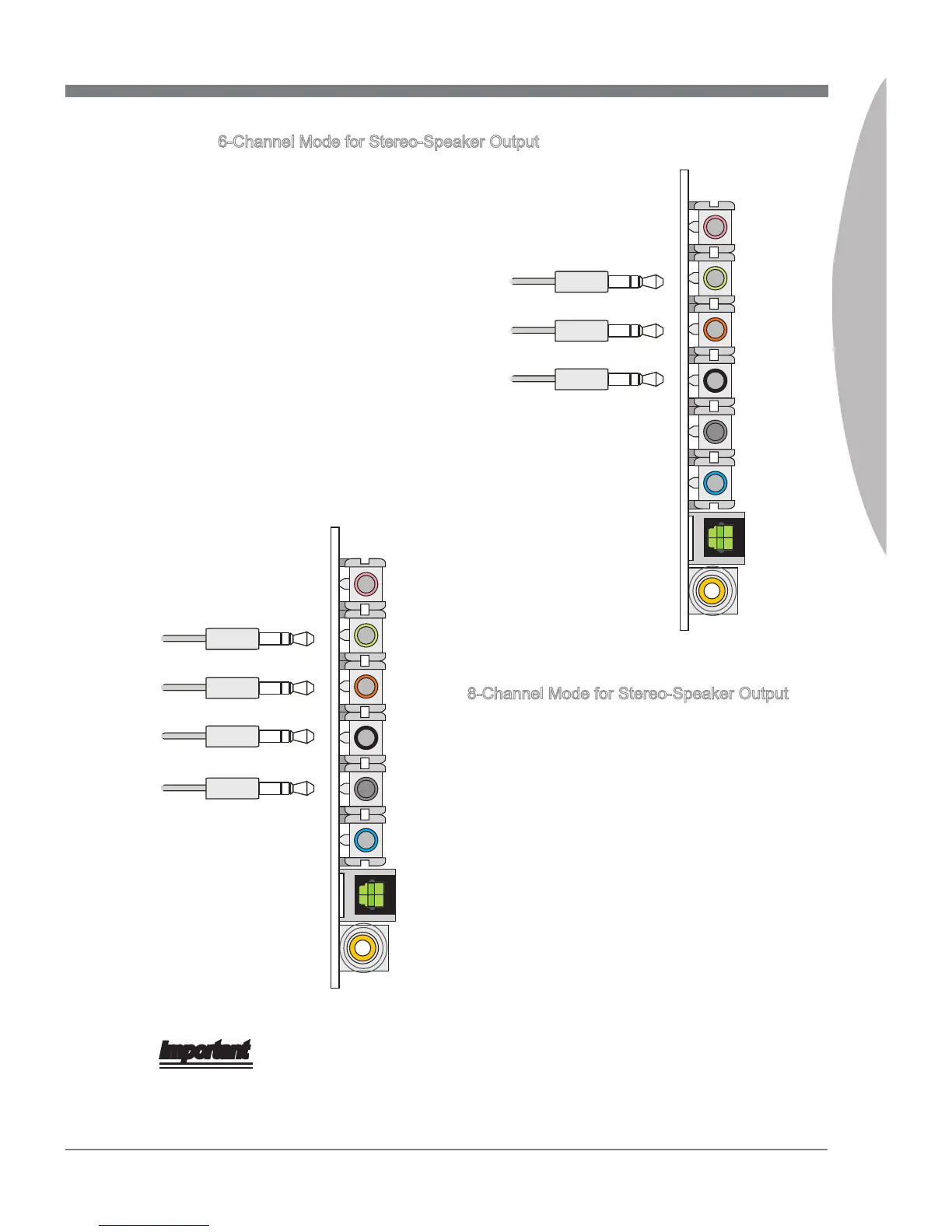

6-Channel Mode for Stereo-Speaker Output
MIC
Line Out (Front channels)
Line Out (Center and Subwoofer channel)
Line Out (Rear channels)
No function
Line In
S/PDIF Out - Optical
S/PDIF Out - Coaxial
■
1]
2]
3]
4]
5]
6]
7]
8]
1
2
3
4
5
6
7
8
8-Channel Mode for Stereo-Speaker Output
MIC
Line Out (Front channels)
Line Out (Center and Subwoofer channel)
Line Out (Rear channels)
Line Out (Side channels)
Line In
S/PDIF Out - Optical
S/PDIF Out - Coaxial
■
1]
2]
3]
4]
5]
6]
7]
8]
1
2
3
4
5
6
7
8
Important
To enable 7.1 channel audio-out function on Windows Vista / Windows 7 operating
system, you have to install the Realtek Audio Driver. Or, the mainboard will support 5.1
channel audio-out only.
