B-5
Intel RAID
MS-7666
Appendix B

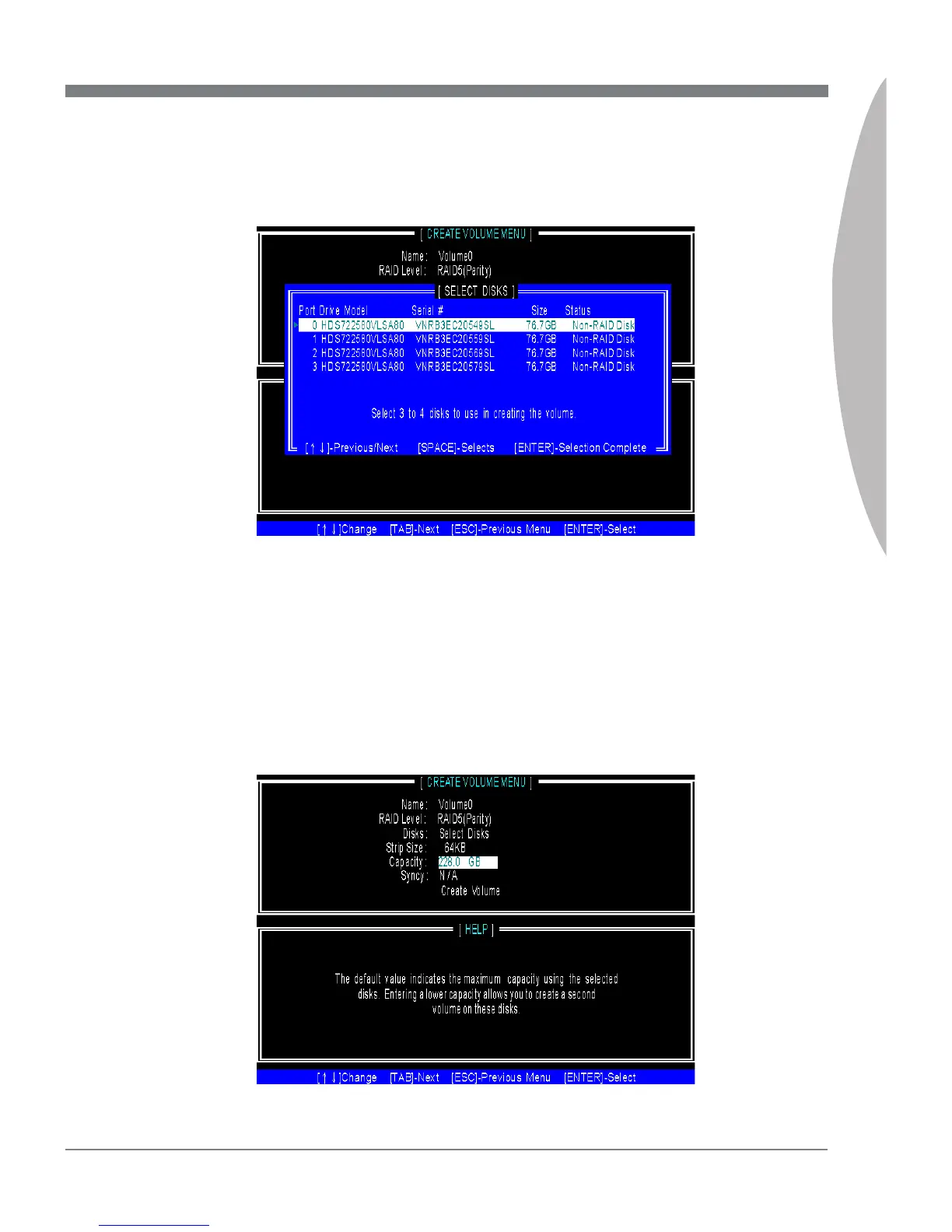

In the Disk eld, press <Enter> key and the following screen appears. Use <Space>
key to select the disks you want to create for the RAID volume, then click <Enter>
key to nish selection.
3.
Then select the strip value for the RAID array by using the “upper arrow” or
“down arrow” keys to scroll through the available values, and pressing the
<Enter> key to select and advance to the next eld. The available values
range from 4KB to 128 KB in power of 2 increments. The strip value should
be chosen based on the planned drive usage. Here are some typical values:
RAID0 -128KB / RAID10 - 64KB / RAID5 - 64KB.
Then select the capacity of the volume in the Capacity eld. The default value is the
maximum volume capacity of the selected disks.
4.
5.
