MSI MS-7667 - Front USB Connectors

Hardware Setup
MS-7667
Chapter 2
2-15
Hardware Setup
MS-7667
Chapter 2

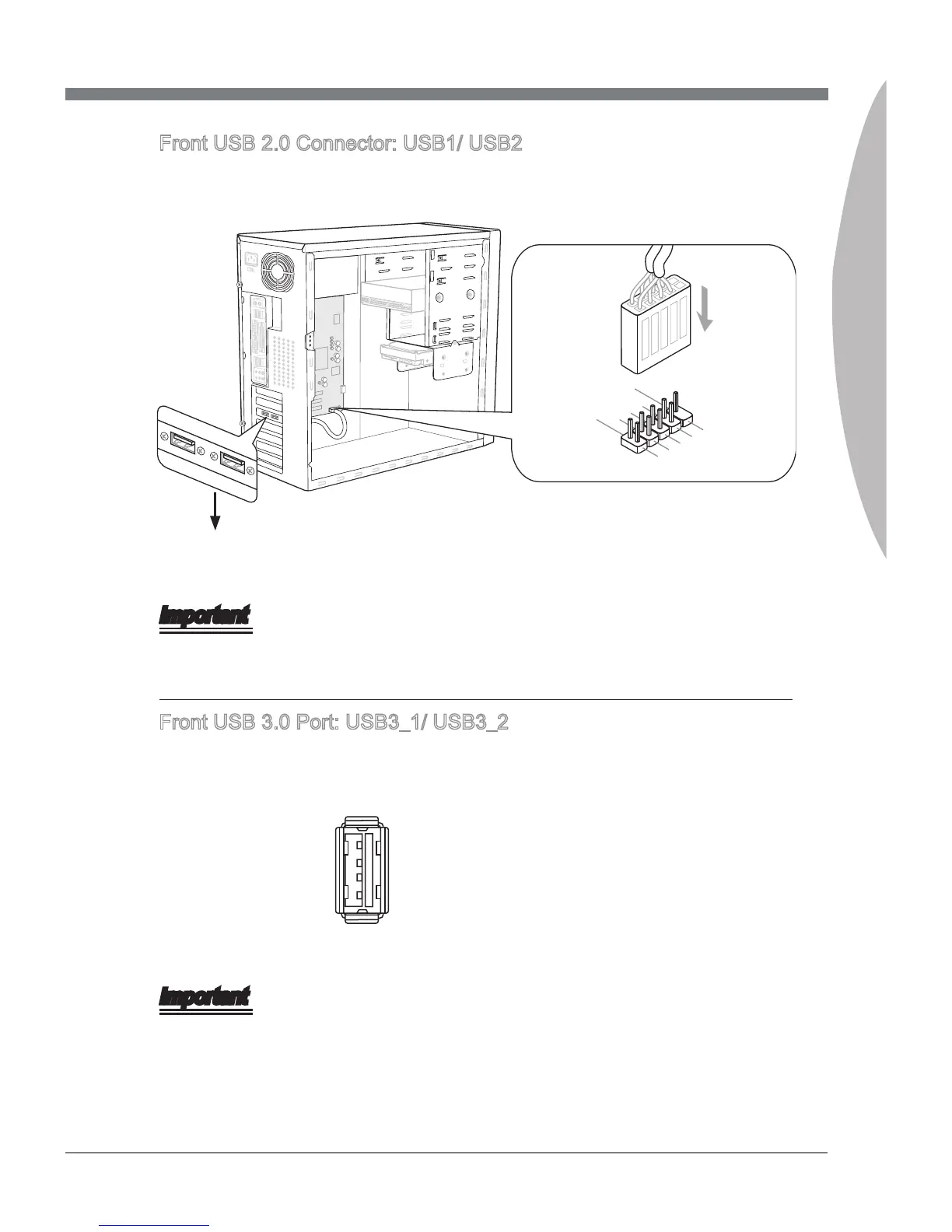

Front USB 2.0 Connector: USB1/ USB2
This connector, compliant with Intel
®
I/O Connectivity Design Guide, is ideal for con-
necting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3
players, printers, modems and the like.
11
5V
1.VC
C
3.USB0
-
10.NC
5.USB0
+
7
.Ground
9.No
Pin
8
.Ground
6.USB1
+
4.USB1
-
2.VC
C
* The MB layout in this 󰘰gure is for reference only.
USB Bracket (optional)
Important
Note that the pins of VCC and GND must be connected correctly to avoid possible
damage.
Front USB 3.0 Port: USB3_1/ USB3_2
USB 3.0 port is backward-compatible with USB 2.0 devices. Supports data transfer rate
up to 5 Gbit/s (SuperSpeed). It is for medion front connect module.
USB 3.0 connector
Important
If you want to use a USB 3.0 device, you must use the USB 3.0 cable to connect to
the USB 3.0 port.
•
•
