2-9
MS-9897

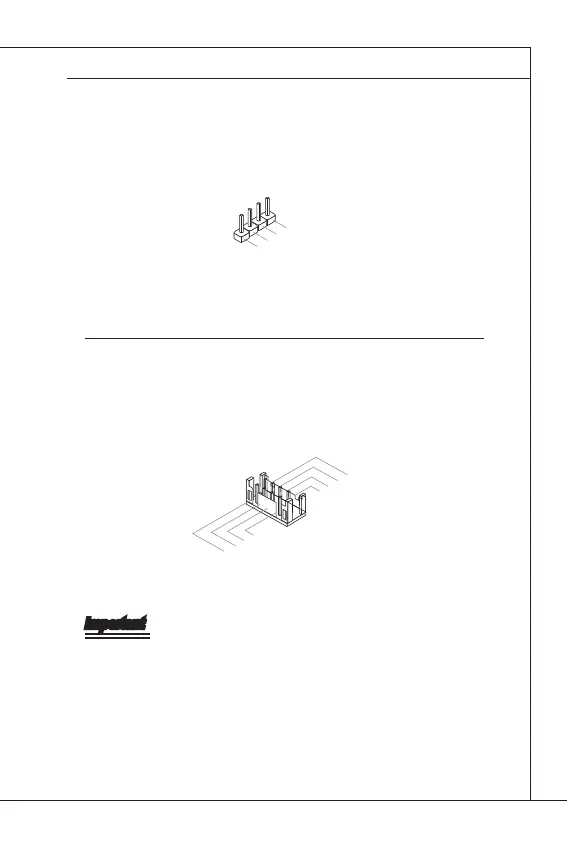

Audio Amplier Pinheader: JAMP1
The JAMP1 is used to connect audio ampliers to enhance audio perfor-
mance.
2.AMP_L+
1.AMP_L-
4.AMP_R+
3.AMP_R-
Front USB Pinheader: JUSB1
This connector, compliant with Intel I/O Connectivity Design Guide, is ideal
for connecting high-speed USB interface peripherals such as USB HDD,
digital cameras, MP3 players, printers, modems and the like.
8
.GN
D
3.SBD 4 -
1.+5
V
6.SBD 5 +
5.SBD 4 +
4.SBD 5 -
7
.GN
D
2.+5
V
Important
Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.
