MSI MS-98F5 - Audio Ports

2-6
Hardware Setup Industrial Computer Board

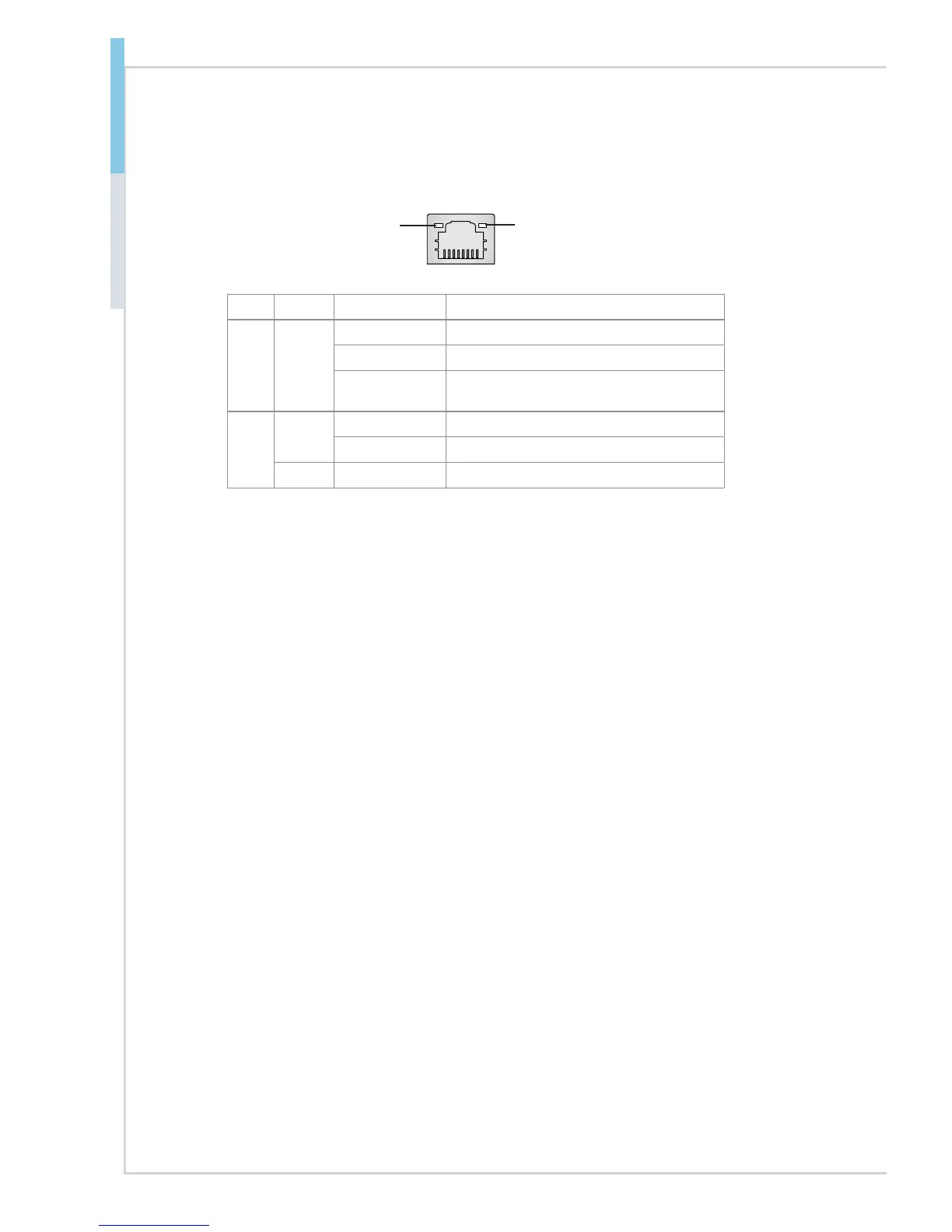

h LAN Jack
The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN).
You can connect a network cable to it.
Yellow Green/ Orange
LED Color LED State Condition
Left Yellow O󰀨 LAN link is not established.
On (steady state) LAN link is established.
On (blinking) The computer is communicating with another
computer on the LAN.
Right Green O󰀨 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
h Audio Ports
These audio connectors are used for audio devices. It is easy to di󰀨erentiate
between audio e󰀨ects according to the color of audio jacks.
■ Line-Out (Green) - Line Out, is a connector for speakers or headphones.
■ Mic (Pink) - Mic, is a connector for microphones.
