MSI MS-98I8 - GPIO Connector: JGPIO1; RS232 Serial Port Connector: JCOM2, JCOM3, JCOM4

2-8
Hardware Setup MS-98I8

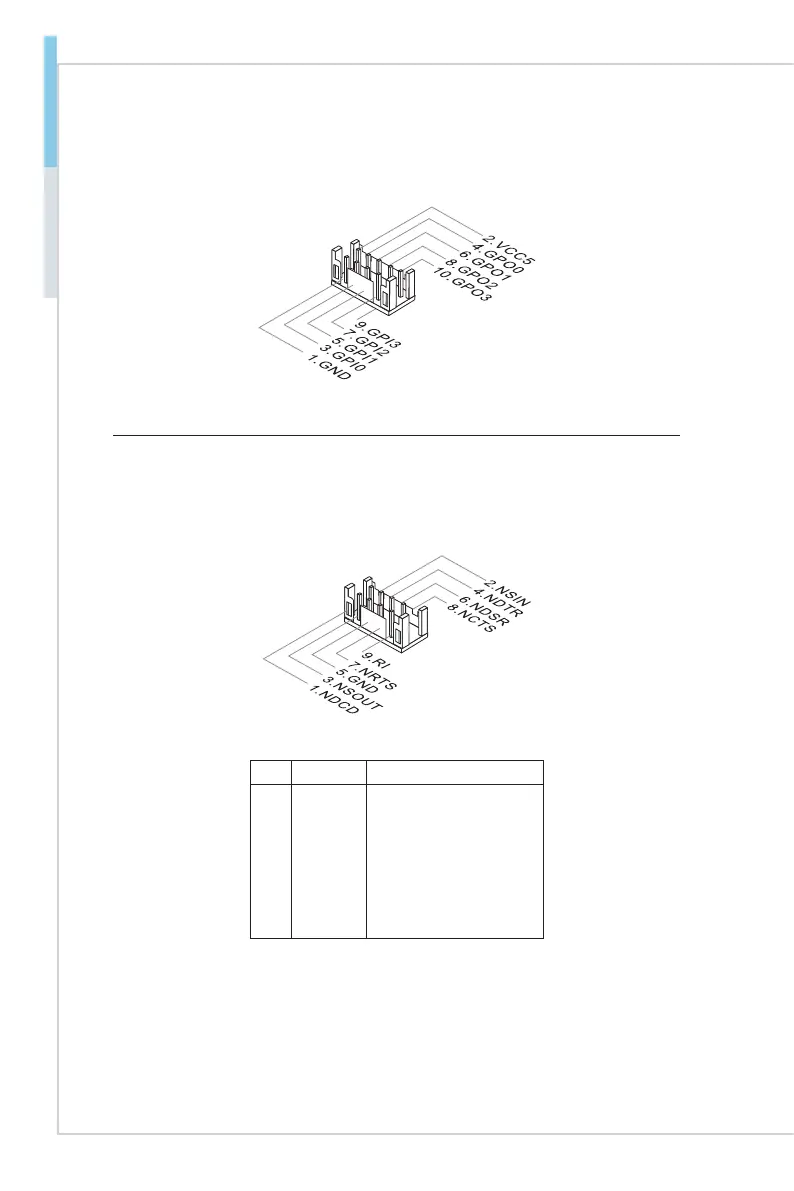

GPIO Connector: JGPIO1
This connector is provided for the General-Purpose Input/Output (GPIO)
peripheral module.
RS232 Serial Port Connector: JCOM2, JCOM3, JCOM4
This connector is a 16550A high speed communications port that sends/receives
16 bytes FIFOs. You can attach serial devices to it through the optional serial
port bracket.
PIN SIGNAL DESCRIPTION
1
2
3
4
5
6
7
8
9
NDCD
NSIN
NSOUT
NDTR
GND
NDSR
NRTS
NCTS
RI
Data Carrier Detect
Signal In
Signal Out
Data Terminal Ready
Signal Ground
Data Set Ready
Request To Send
Clear To Send
Ring Indicator
