2-11
Hardware Setup MS-98I8

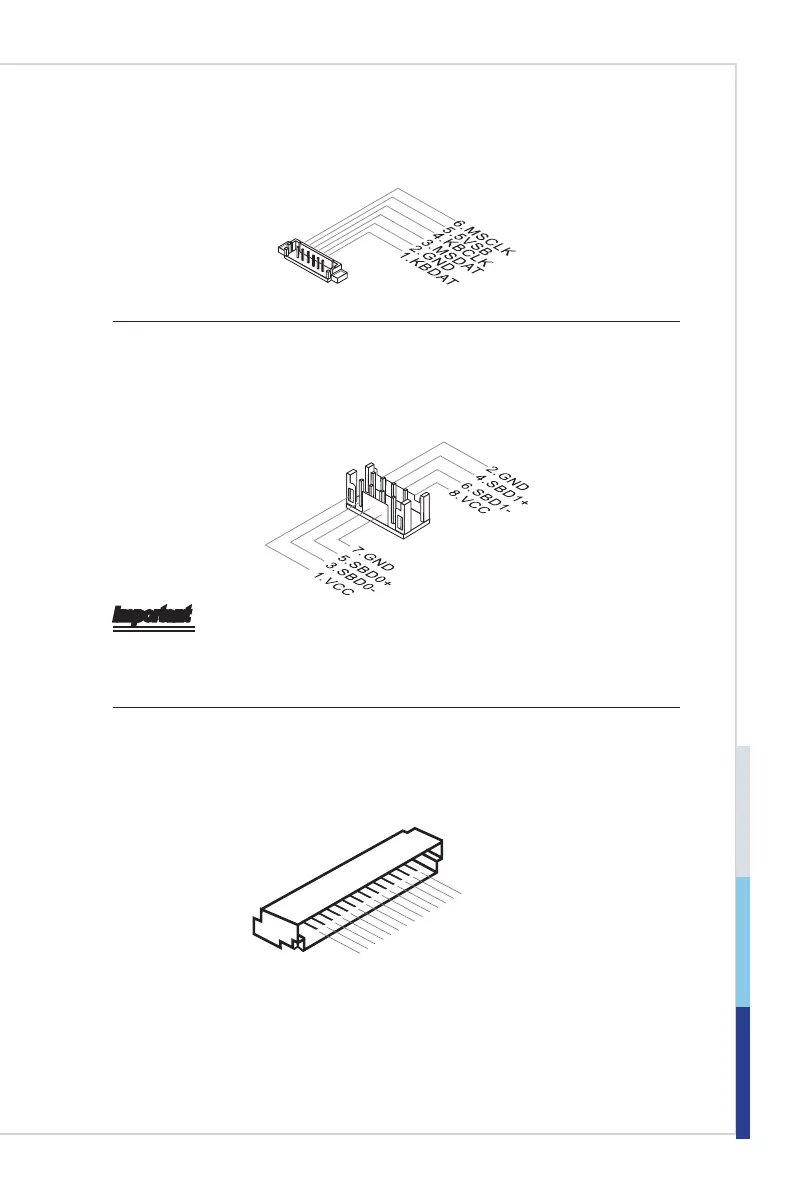

Keyboard/Mouse Connector: JKBMS1
This connector is provided to connect a keyboard and a mouse.
USB 2.0 Header: JUSB1
This connector, compliant with Intel I/O Connectivity Design Guide, is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital
cameras, MP3 players, printers, modems and the like.
Important
Note that the pins of VCC and GND must be connected correctly to avoid pos-
sible damage.
LPC Debug Port Connector: JLPC1 (With TPM Support)
This connector works as LPC debug port and supports TPM modules through
an adapter.
1.LPC_FRAME#
2.LPC_AD3
3.LPC_AD2
4.LPC_AD1
5.LPC_AD0
6.L_LDRQ0#
7.TPM_CLK
8.SERIRQ_R
9.PLTRST_TPM#
10.VCC5
11.VCC3
12.GND
13.NA
14.GND
