MSI PRO H510M-B - M.2 Slot Installation Guide; M2_1 M.2 Slot Setup Procedure

26
M2_1: M.2 Slot (Key M)

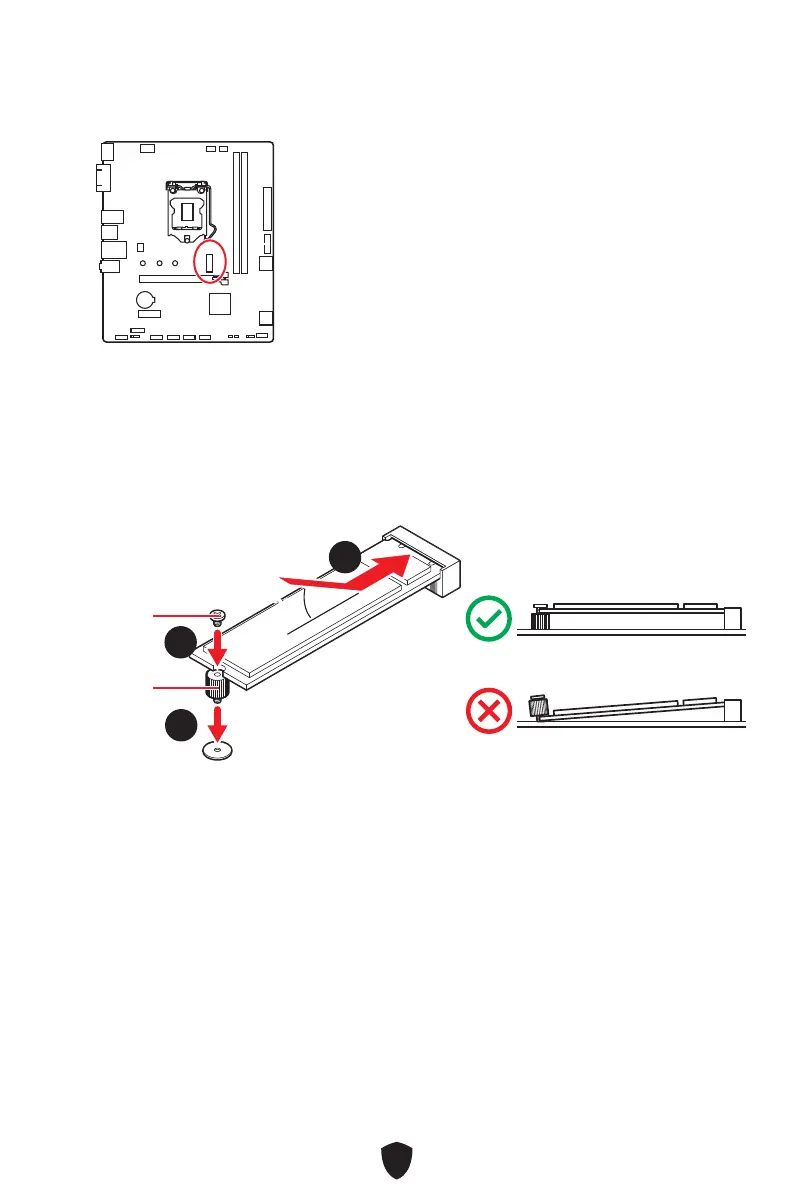

Installing M.2 module into M2_1 slot
1. Please install the supplied M.2 standoff in the M.2 slot according to your SSD
length.
2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
3. Secure the M.2 SSD in place with the supplied M.2 screw.
30º30º
33
11
22
M.2 screw
M.2 standoff
