MS-7145 M-ATX Mainboard

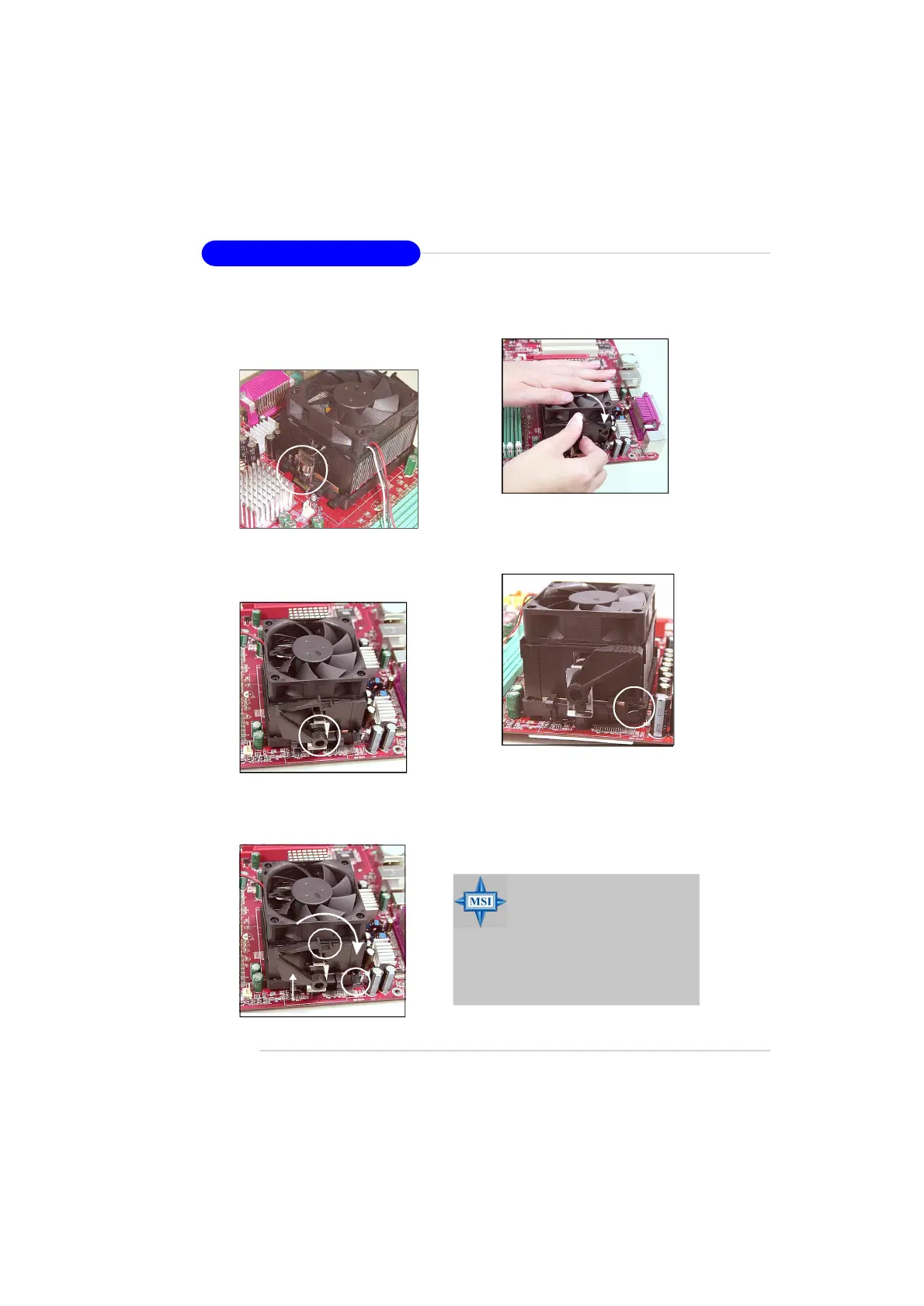

8.Fasten down the lever.

9.Make sure the safety hook

completely clasps the fixed

bolt of the retention

mechanism.

6.Press down the other end of the

clip to fasten the cooling set on

the top of the retention

mechanism.

5.Position the cooling set onto the

retention mechanism. Hook one

end of the clip to hook first.

7.Locate the Fix Lever, Safety Hook

and the Fixed Bolt. Lift up the in-

tensive fixed lever.

Safety Hook

Fixed Bolt

Fixed Lever

MSI Reminds You...

While disconnecting the Safety

Hook from the fixed bolt, it is

necessary to keep an eye on

your fingers, because once the

Safety Hook is disconnected

from the fixed bolt, the fixed

lever will spring back instantly.
