2-10
MS-7145 M-ATX Mainboard

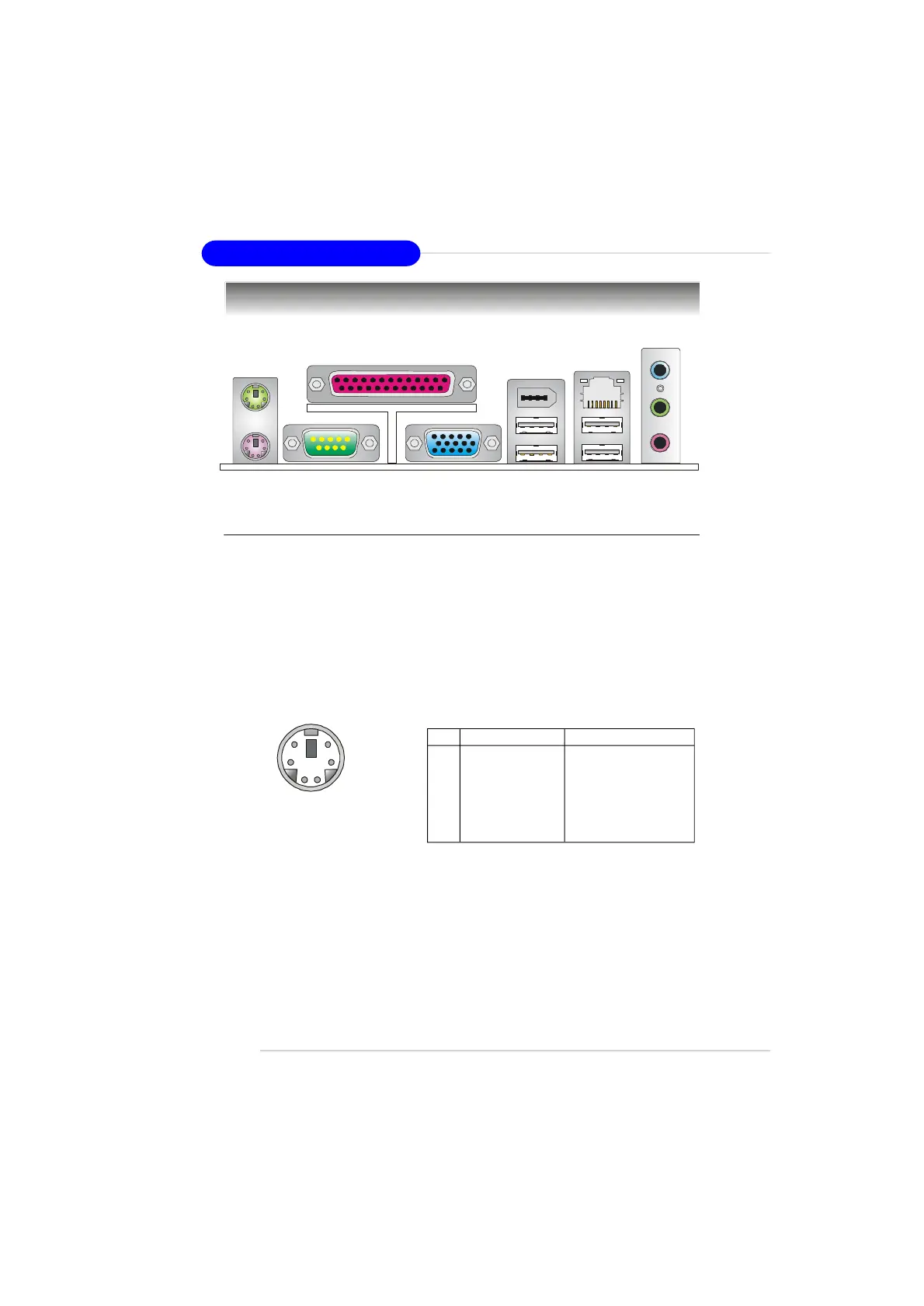

Back Panel
Mouse/Keyboard Connector
The mainboard provides a standard PS/2
®
mouse/keyboard mini DIN connec-
tor for attaching a PS/2
®
mouse/keyboard. You can plug a PS/2
®
mouse/keyboard
directly into this connector. The connector location and pin assignments are as
follows:
PS/2 Mouse / Keyboard
(6-pin Female)
2
1
3
4
5
6
PIN SIGNAL DESCRIPTION
1 Mouse/Keyboard Data Mouse/Keyboard data
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse/Keyboard Clock Mouse/Keyboard clock
6 NC No connection
Pin Definition
Keyboard
USB Ports
L-Out
Mic
L-In
Mouse
Parallel
(optional)
1394 Port
LAN
VGA Port
COM Port
