Overview of Components

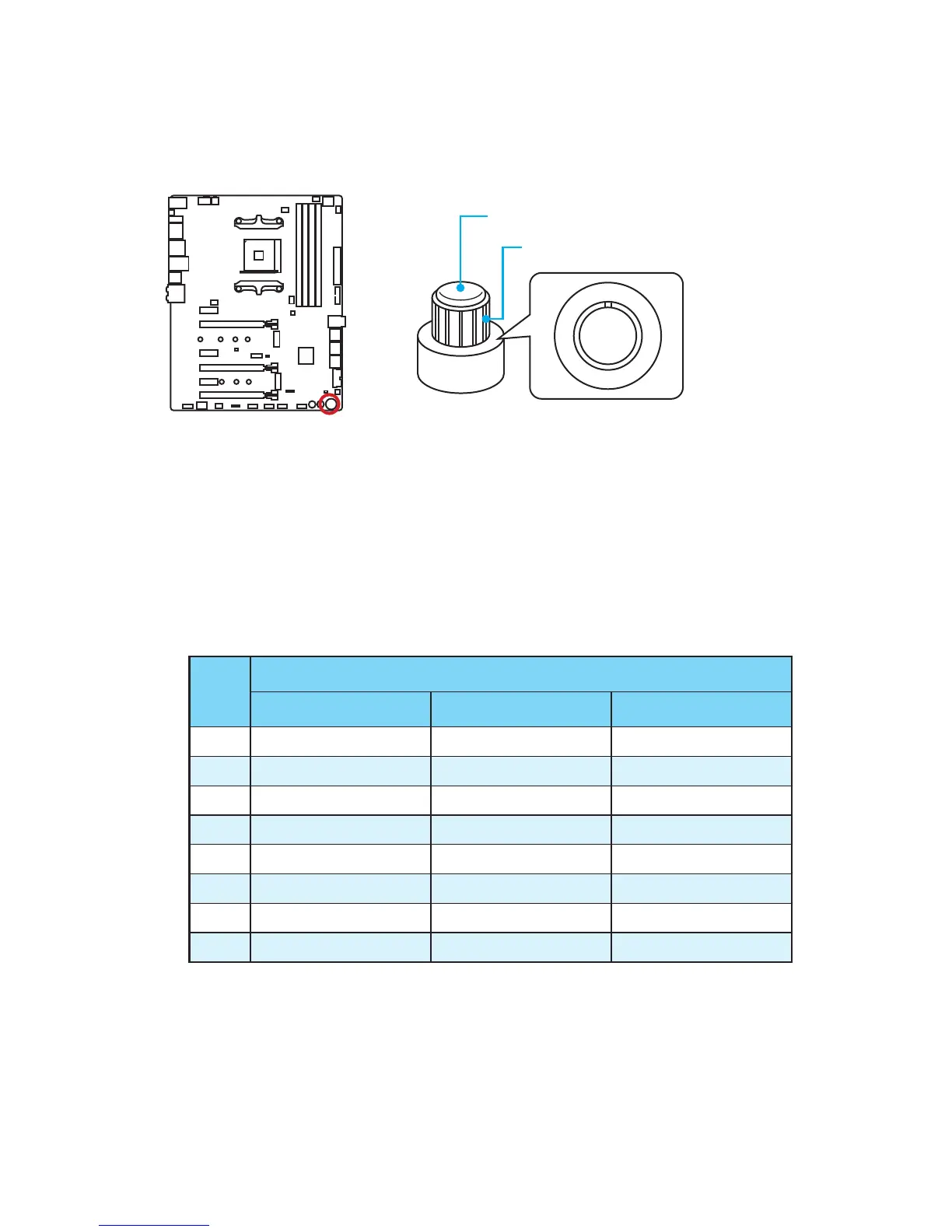

OC1: GAME BOOST Knob
This knob allows you to manually select a stage from number 0 (default) to number 11
(extreme) for overclocking the AMD RYZEN series processors. The processor’s voltage
and frequency will be automatically adjusted after you power on your computer.
Instant OC button
GAME BOOST knob
0
1
2
4
6
8
1
0
1
1
Using GAME BOOST Knob
To setup the GAME BOOST knob, take the following steps:
1. Set the GAME BOOST knob to hardware mode in BIOS Setup.
Note: To make sure the GAME BOOST is controlled by hardware, please refer
to the GAME BOOST LED indicators next to the GAME BOOST knob on the
motherboard. The red/green LED indicates the GAME BOOST is controlled by
hardware/software. You can switch between hardware and software in BIOS Setup.
2. Power off the computer.
3. Rotate the GAME BOOST knob to select the overclocking stage as you desire.
Stage
RYZEN series CPU Frequency
8-core CPU 6-core CPU 4-core CPU
0 3.60 GHz 3.30 GHz 3.20 GHz
1 4.10 GHz 4.00 GHz 3.90 GHz
2 4.15 GHz 4.05 GHz 3.95 GHz
4 4.20 GHz 4.10 GHz 4.00 GHz
6 4.25 GHz 4.15 GHz 4.05 GHz
8 4.30 GHz 4.20 GHz 4.10 GHz
10 4.35 GHz 4.25 GHz 4.15 GHz
11 4.40 GHz 4.30 GHz 4.20 GHz
4. Power on and then the GAME BOOST will automatically overclock processor
depending on the stage you selected.
