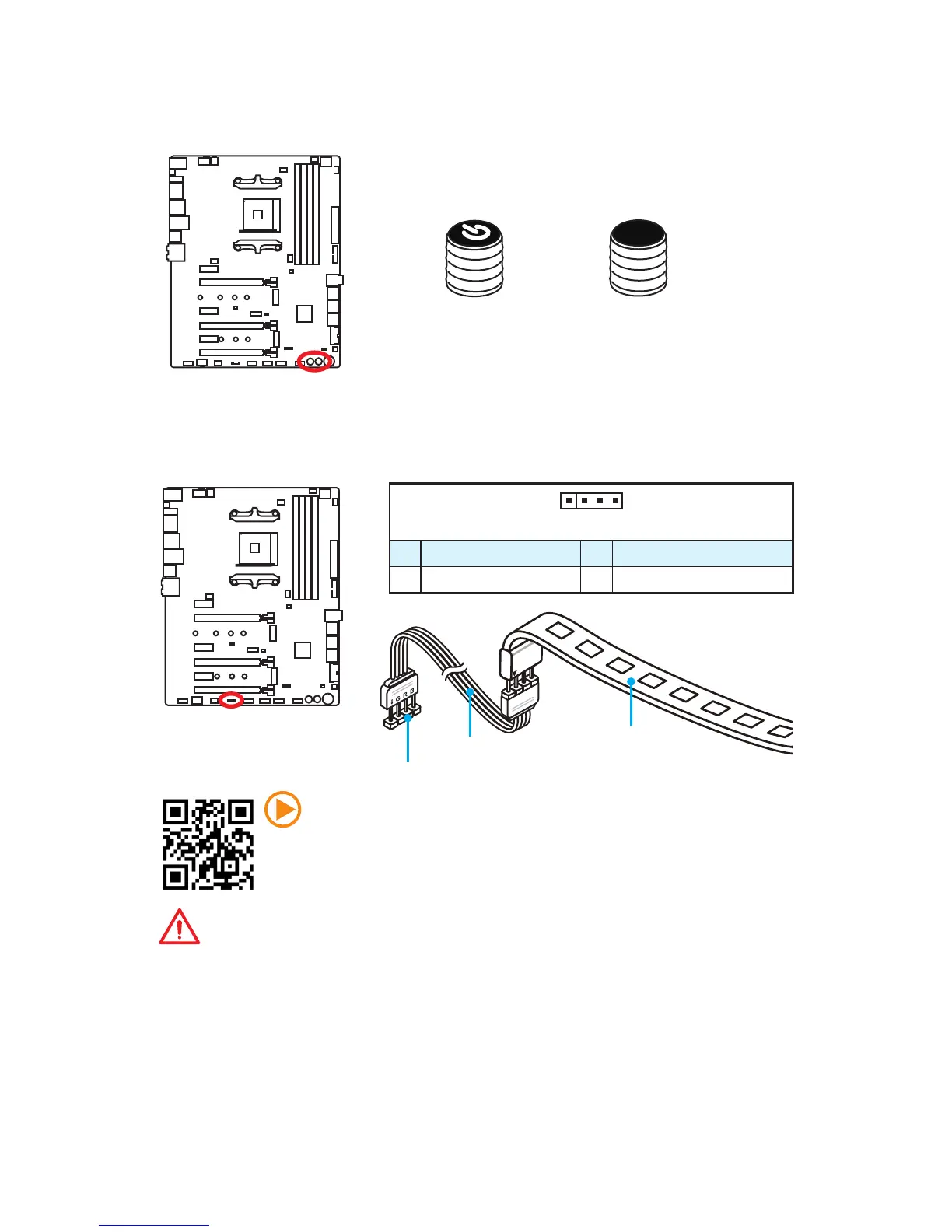

POWER1, RESET1: Power Button, Reset Button
The Power / Reset button allows you to power on / reset the computer.
Power button
Reset
Reset button
Important
y
This connector supports 5050 multi-color LED strips with the maximum power
rating of 3A (12V). Please keeping the LED strip shorter than 2 meters to prevent
dimming.
y
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the LED strip.
y
Please use GAMING APP to control the extended LED strip.
Video Demonstration
Watch the video to learn how to install 5050 RGB LED strips to RGB LED
connector.
https://youtu.be/CqNHyADzd2Q
JLED1: RGB LED connector
These connectors allow you to connect the 5050 RGB LED strips.
1
JLED1
Extension cable
5050 LED strip
1
1 +12V 2 G
3 R 4 B
